Insulator, Engine Mount, Right: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the belly pan

    Refer to BELLY PAN, REMOVAL .

  3. If equipped, remove the skid plate. Refer to PLATE, SKID, SIDE, REMOVAL .
  4. Remove the left front wheelhouse splash shield. Refer to REMOVAL .
    GC0183773Courtesy of CHRYSLER GROUP, LLC
  5. Remove the fastener (1) and remove the negative battery cable (2) from the transmission (3).
    CAUTION:

    Failure to remove the negative battery cable may overstress to the cable due to bending during service.

  6. Remove the air cleaner body. Refer to REMOVAL  .

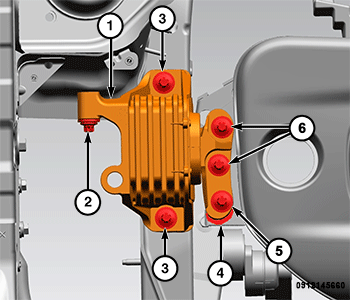

    GC0186455Courtesy of CHRYSLER GROUP, LLC
  7. Using a paint pen or marker, mark the location of the right isolator on the engine timing cover (4).
  8. Support the powertrain with a suitable jack.
  9. Remove the three isolator to bracket bolts (5, 6).
  10. Remove the isolator to strut tower bolt (2).
  11. Remove the two isolator to frame rail bolts (3) and remove the right engine mount isolator (1).
