Sensor, Oil Pressure: Installation
WARNING: This page is about a different variant/trim than selected.

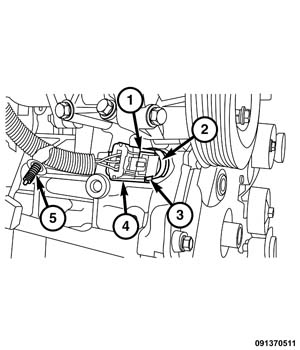

- Install the oil pressure sensor (2) into the engine block and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install and lock the electrical connector (4).
- Engage the harness retainer (5) into the engine block.
- Install the belly pan. Refer to BELLY PAN, INSTALLATION .
- Remove the support and lower the vehicle.
- Reconnect the negative battery cable.
