Bracket, Engine Mount, Rear: Installation
WARNING: This page is about a different variant/trim than selected.

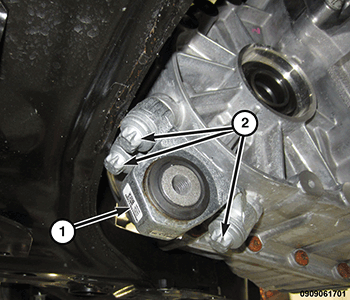

- Install the rear engine mount bracket (1) and tighten the three bolts (2) to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
- Install the rear engine mount insulator. Refer to INSTALLATION .
- Remove the support and lower the vehicle.
