Sensor, Differential Pressure: Installation
WARNING: This page is about a different variant/trim than selected.

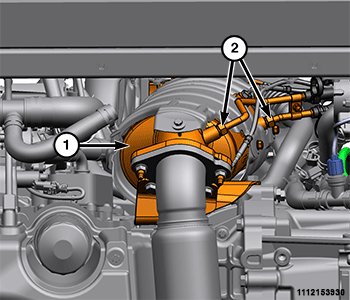

- If removed, install the differential pressure sensor tubes (2) and securely tighten.
- If removed, install the engine belly pan. Refer to BELLY PAN, INSTALLATION
.

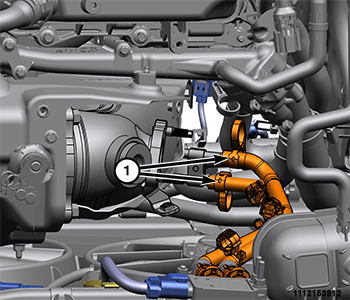

- If removed, install the differential pressure hoses to the tubes.

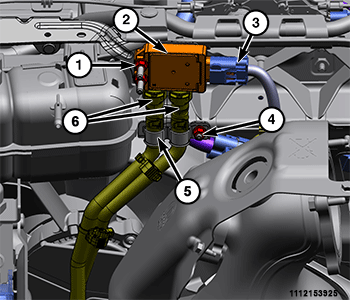

- Connect the differential pressure sensor hoses (6).
- Install the differential pressure sensor (2) and securely tighten the nuts (1).
- Install the retainer (5) and securely tighten the nut (4).
- Connect the differential pressure sensor wire harness connector (3).

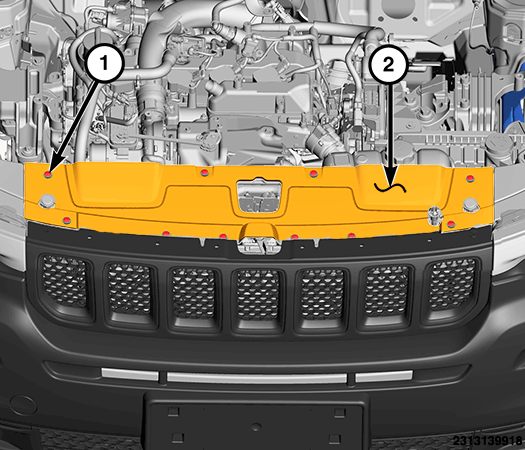

- Install the radiator closeout panel (2) and the 10 push pin fasteners (1).
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
