Link, Stabilizer Bar: Installation

Courtesy of CHRYSLER GROUP, LLC

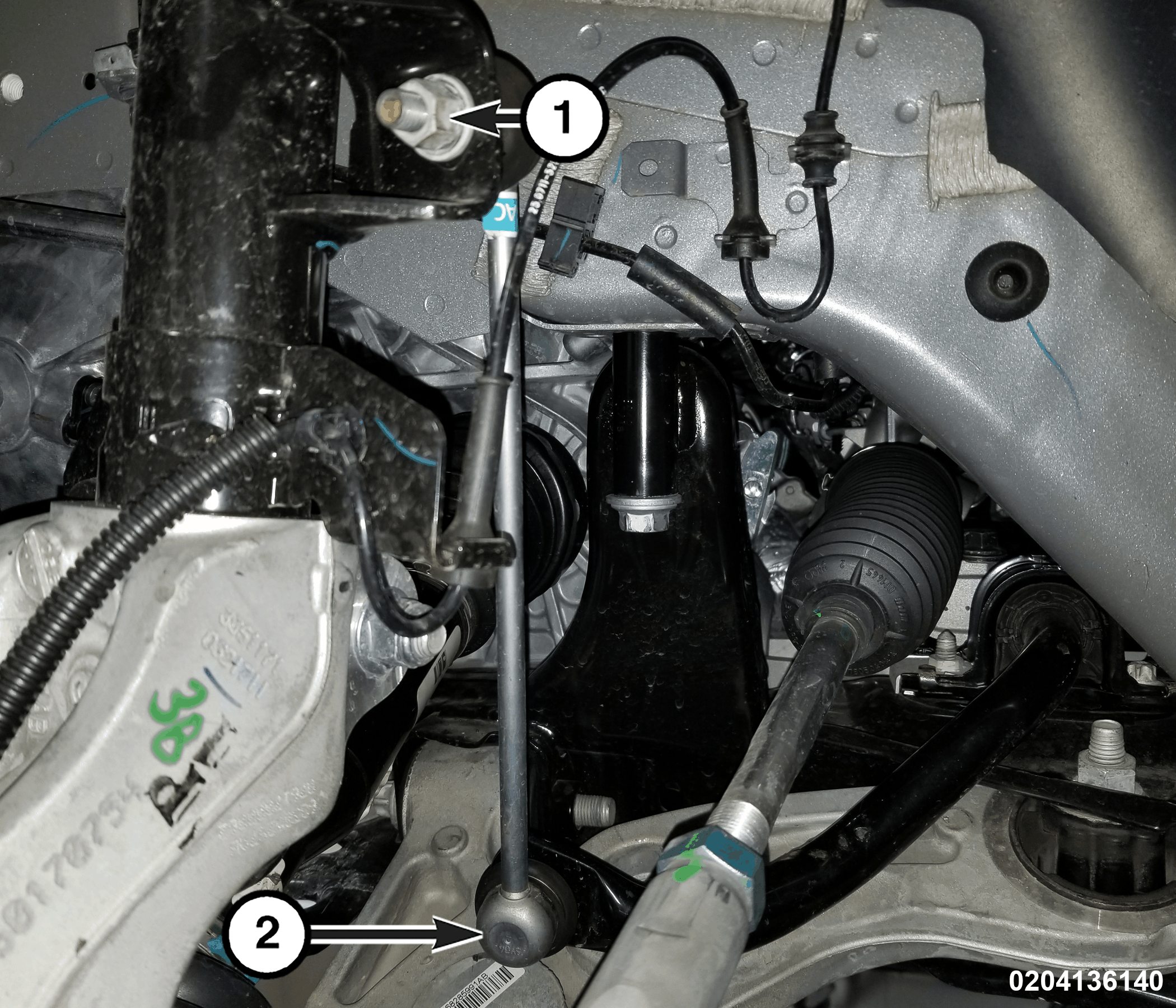

1. Position the stabilizer bar link to the strut and install the stabilizer bar link to strut nut (1).
2. Hold the ball stud with a suitable tool and tighten the stabilizer bar link to strut nut (1) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
3. Position the stabilizer bar link to the stabilizer bar and install the stabilizer bar link to stabilizer bar nut.
4. Hold the ball stud with a suitable tool and tighten the stabilizer bar link to stabilizer bar nut to the proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
5. Install the tire and wheel assembly and the lug bolts. Refer to INSTALLATION .
6. Remove the support and lower the vehicle.
