Fluid Pressure Sensor Removal

Remove the valve body. Refer to VALVE BODY, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

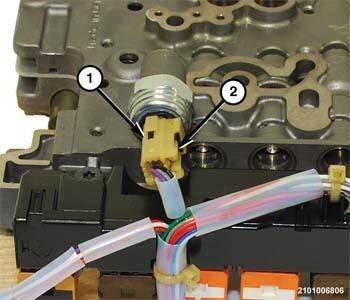

Release the lock (2) on the fluid pressure sensor wire harness connector (1).
Pull the wire harness connector (1) from the fluid pressure sensor.

Courtesy of CHRYSLER GROUP, LLC

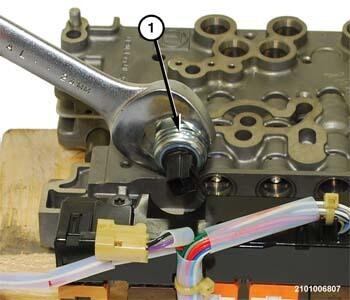

Using a suitable wrench, loosen the fluid pressure sensor (1).

Courtesy of CHRYSLER GROUP, LLC

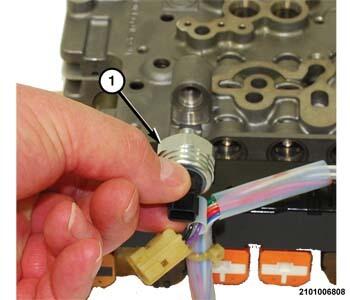

Remove the fluid pressure sensor (1) from the valve body.
