Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Install the hitch assembly (1) onto the frame rails (2).

   Courtesy of CHRYSLER GROUP, LLC

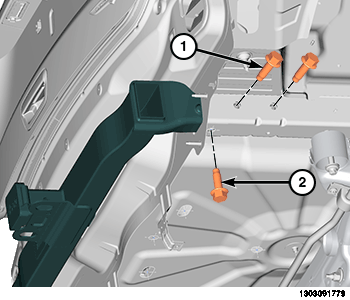

2. Install the lower bolts (2) and the side bolts (1).
3. Tighten the bolts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
4. Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION .
