Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove the rear muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .
2. Remove the rear differential. Refer to REMOVAL AND INSTALLATION .

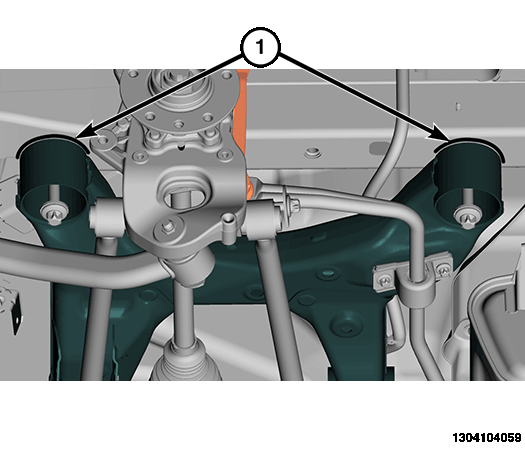

3. Raise the vehicle and using a suitable marking device, mark the position of the crossmember on the rear frame rails (1).

   Courtesy of CHRYSLER GROUP, LLC

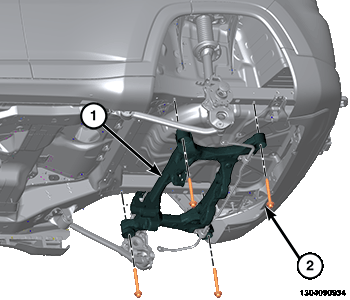

4. Support the crossmember (1) with a suitable lifting device and remove the front and rear bolts (2).

   Courtesy of CHRYSLER GROUP, LLC

   1 - Kit, Pressing Tool 2026900170

   2 - 2046501130 Receiver, Large Bushing Remover

   3 - 2046502130 Remover, Large Bushing

5. Lower the crossmember as necessary and assemble tools over isolator as shown.
   NOTE:

   Prior to using special tools, lubricate Screw Assembly (special tool #8838-2, Screw Assembly) (1) threads to provide ease of use and promote tool longevity.

   NOTE:

   When installing thrust bearing, be sure to place hardened side toward bolt head.

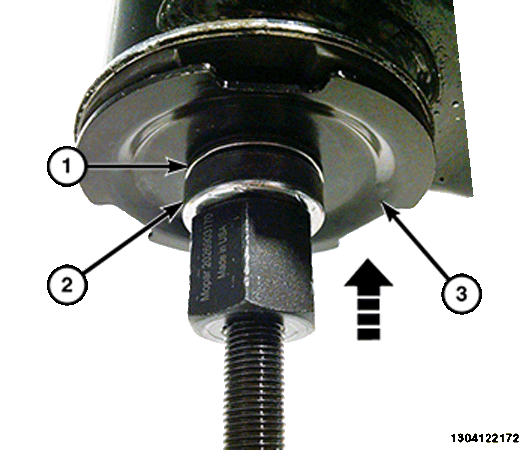

   1. (special tool #2026900170, Kit, Pressing Tool) (1)
   2. (special tool #2046501130, Receiver, Large Bushing Remover) (2)
   3. (special tool #2046502130, Remover, Large Bushing) (3)
6. Tighten the screw assembly, pressing the isolator out of the crossmember and remove the tools with the isolator.

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Assemble tools over isolator as shown.
   1. (special tool #2046503130, Receiver, Large Bushing Installer) (1)
   2. (special tool #2046504130, Installer, Large Bushing) (2)
   3. (special tool #2026900170, Kit, Pressing Tool) (3)

   Courtesy of CHRYSLER GROUP, LLC

2. Center the bushing (2) and press the bushing 1 inch (26 mm) into the cradle (1).
3. Once the bushing has been started and is centered into the cradle, remove the installation bushing tool assembly (3).

   Courtesy of CHRYSLER GROUP, LLC

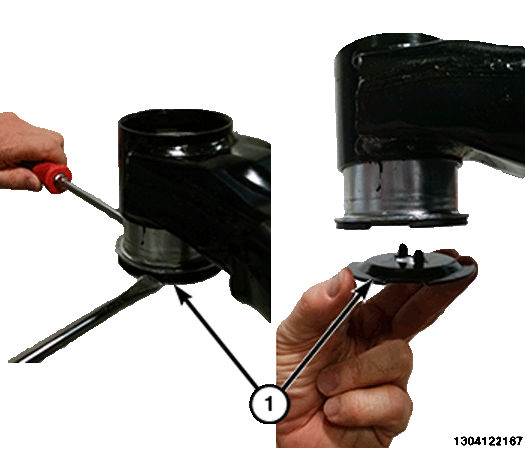

4. Remove the bushing cap (1) from the bushing.

   Courtesy of CHRYSLER GROUP, LLC

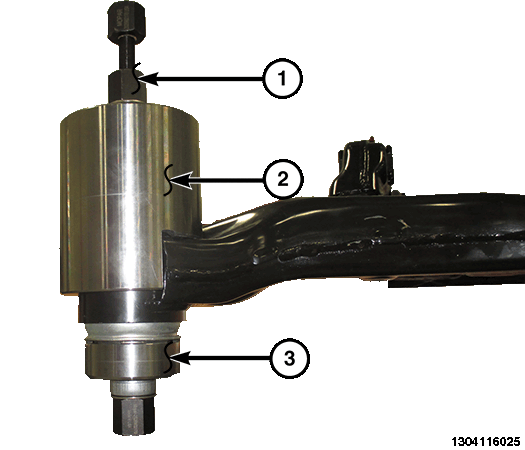

5. Install the installation bushing assembly tools making sure the (special tool #2046504130, Installer, Large Bushing) bushing installer tool (1) is installed with the flat surface facing the bushing in order to fully install the bushing in the cradle.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the bushing until fully seated into cradle.

   Courtesy of CHRYSLER GROUP, LLC

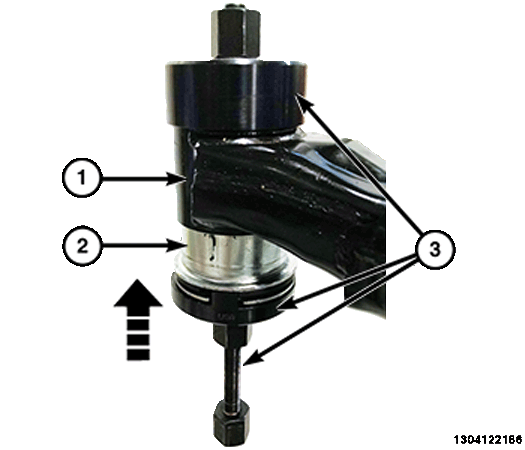

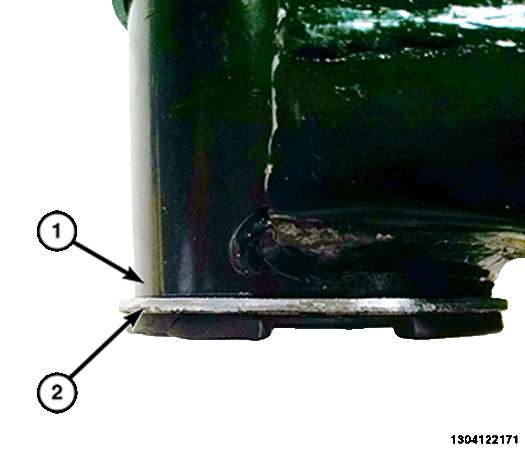

7. Verify that the bushing shoulder (2) is fully seated against the cradle (1).

   Courtesy of CHRYSLER GROUP, LLC

8. Remove the (special tool #2046504130, Installer, Large Bushing) and install the bushing cap (3).

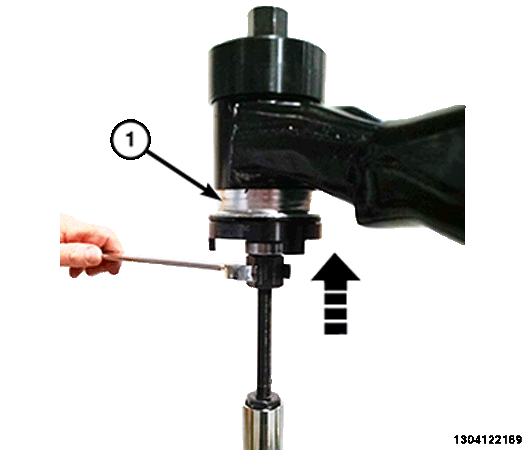

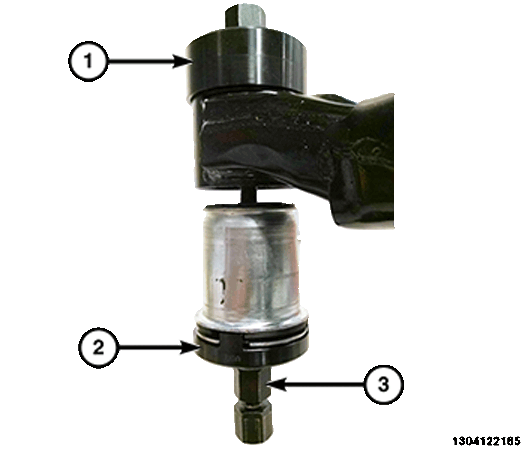

9. Using the Installation bushing assembly tools with washer (1) and bearing (2) installed, press the bushing cap (3) until fully seated.

   Courtesy of CHRYSLER GROUP, LLC

10. Raise the crossmember back into place and install the bolts.
11. Line up the rear crossmember assembly with the marks (1) made during removal.

    Courtesy of CHRYSLER GROUP, LLC

12. Tighten the bolts (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
13. Install the rear differential. Refer to REMOVAL AND INSTALLATION .
14. Install the rear muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .

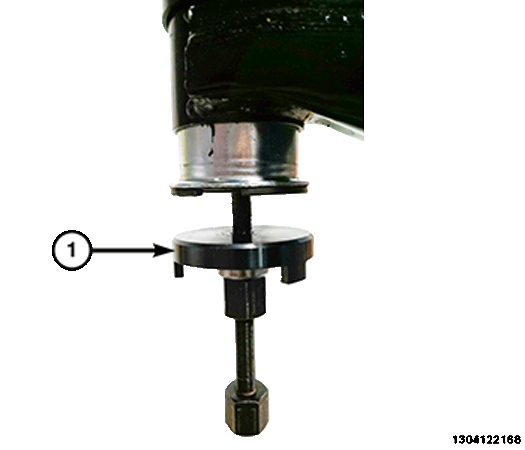

15. Tighten Screw Assembly (1) using hand tools  , pressing isolator into crossmember. Stop when the isolator bottoms against Remover/Installer, Bushing.
