Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
2. If equipped, remove the front tow hook(s). Refer to HOOK(S), TOW, FRONT, REMOVAL AND INSTALLATION  .

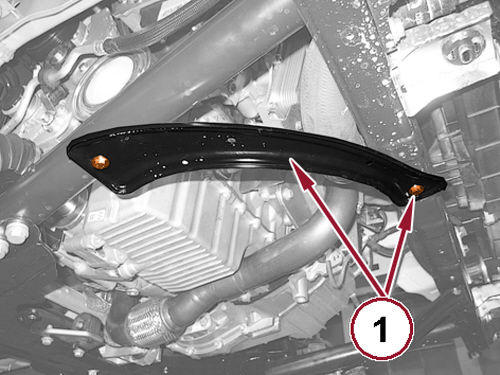

3. Remove the bolts and remove the reinforcement bracket (1).

   Courtesy of CHRYSLER GROUP, LLC

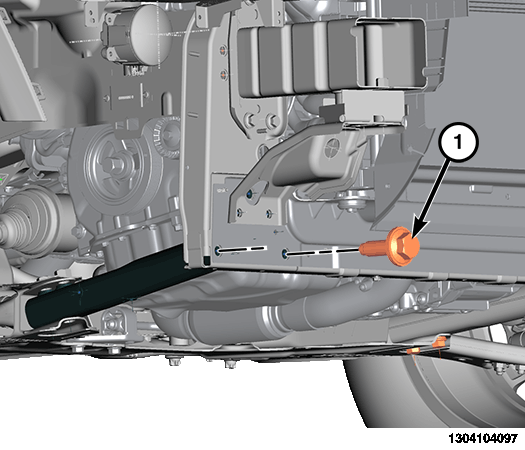

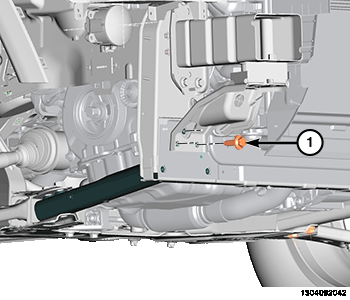

4. Remove the lower load beam bolts (1).

   Courtesy of CHRYSLER GROUP, LLC

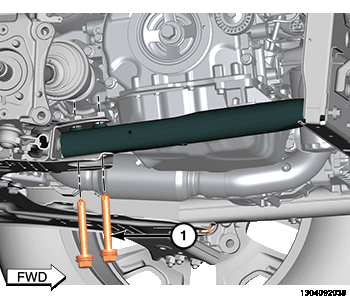

5. Remove three upper load beam and bracket bolts (1).

   Courtesy of CHRYSLER GROUP, LLC

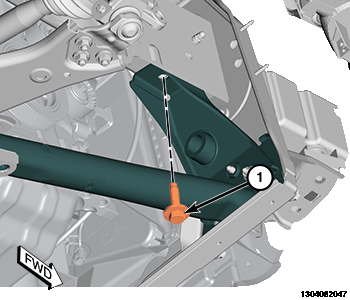

6. Remove the upper bracket bolt (1).

   Courtesy of CHRYSLER GROUP, LLC

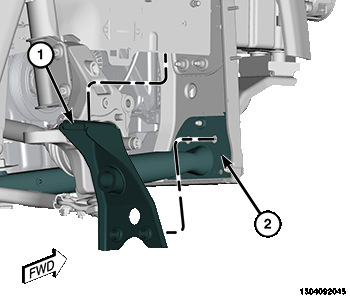

7. Remove the support bracket (1).

   Courtesy of CHRYSLER GROUP, LLC

8. Remove the rear load beam bolts (1).

   Courtesy of CHRYSLER GROUP, LLC

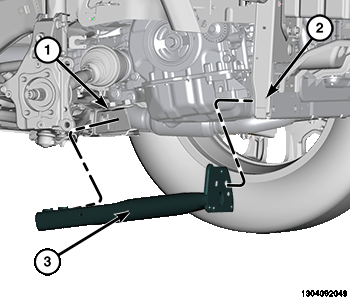

9. Remove the load beam (3).
