Removal And Installation

Courtesy of CHRYSLER GROUP, LLC

REMOVAL

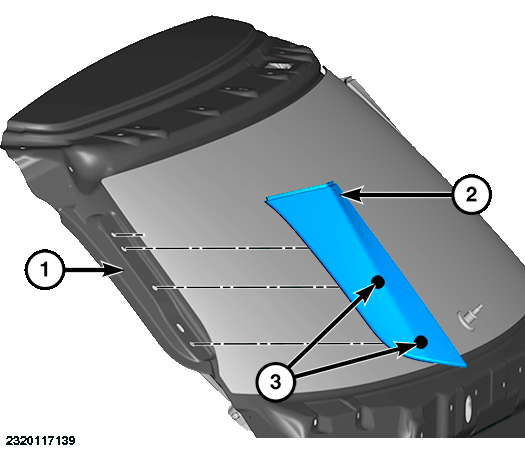

1. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, release the clips (3) and remove the side appliques (2).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Position the appliques (2) back into place on the liftgate (1) aligning the top pins and seating the clips (3) fully.
