Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.

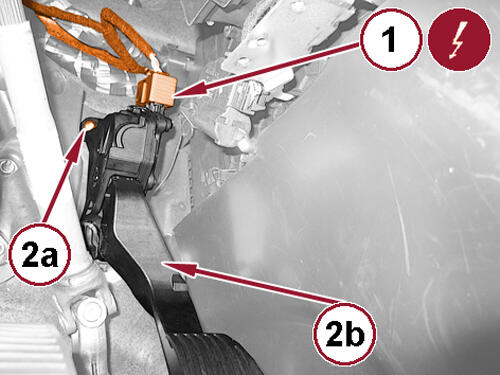

    GC0163367Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the accelerator pedal wire harness connector (1).
  3. Remove the screw (2a), push up to release and remove the accelerator pedal (2b).
