Removal And Installation: Installation

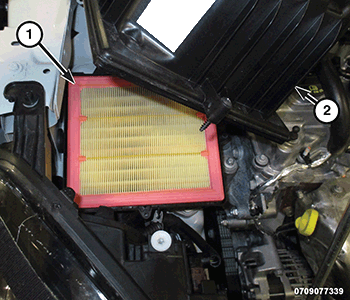

GC0174297Courtesy of CHRYSLER GROUP, LLC
  1. Position the air cleaner (1) into the air cleaner body.

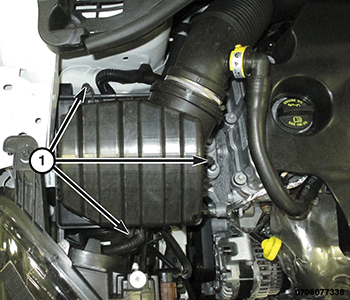

    GC0174423Courtesy of CHRYSLER GROUP, LLC
  2. Seat the air cleaner body cover onto the air cleaner body and securely tighten the three screws (1).
