Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Lubricate the three rubber mount sockets on the engine cover with Mopar® Rubber Bushing Installation Lube.

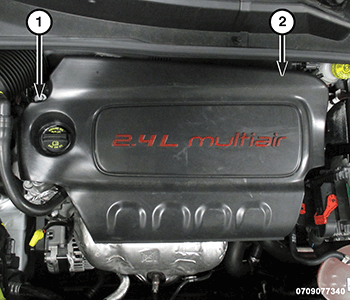

2. Align the rubber mount sockets of the engine cover (2) to the three ball studs and press firmly downwards.
3. Install the bolt (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
