Removal And Installation

REMOVAL

1. Remove the right rear splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .
2. Remove the fuel fill housing. Refer to HOUSING, FUEL FILL, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

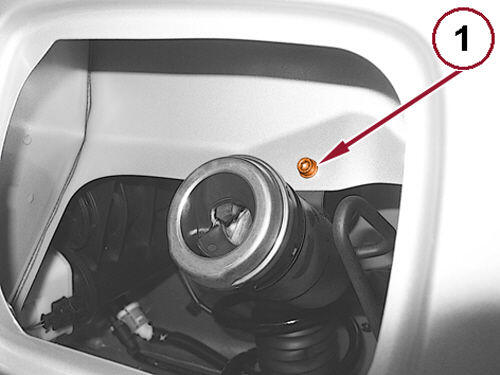

3. Remove the fuel filler tube retaining screw (1).
4. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

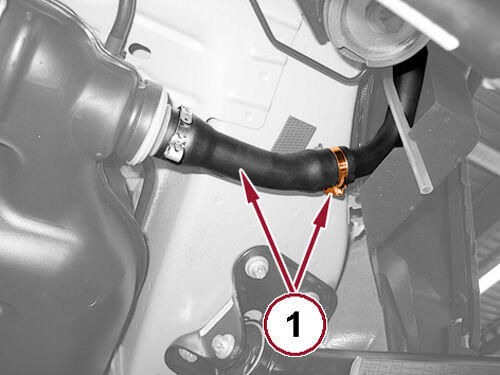

5. Loosen the clamp and disconnect the hose from the fuel filler tube (1).

   Courtesy of CHRYSLER GROUP, LLC

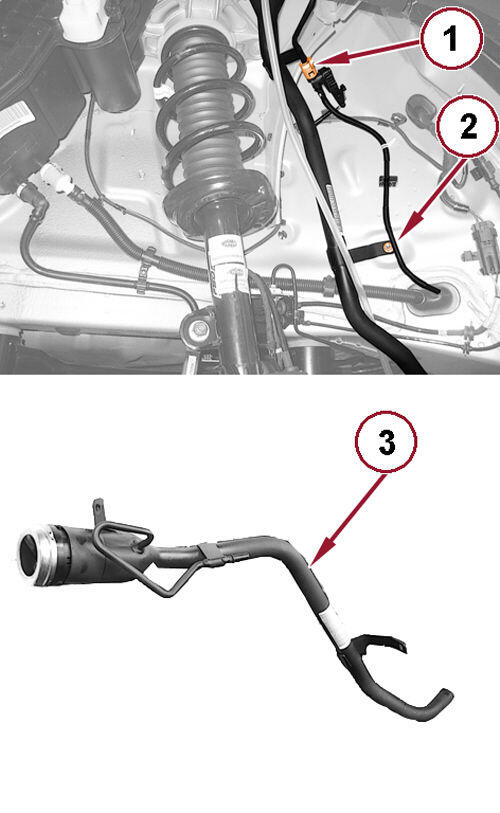

6. Disconnect the fuel vapor line quick connector (1).
7. Remove the retaining nut (2), securing the fuel filler tube to the body.
8. Remove the fuel filler tube (3).

INSTALLATION

1. Position the fuel filler tube and install the tube to body retaining nut.
2. Connect the fuel vapor line quick connector.
3. Connect the hose to fuel filler tube and securely tighten the clamp.
4. Securely tighten the filler tube retaining screw.
5. Install the fuel door, engaging the retaining clips.
6. Position the door retention device and turn the screw 90°.
7. Install the right rear splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .
8. Remove the support and lower the vehicle.
