Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

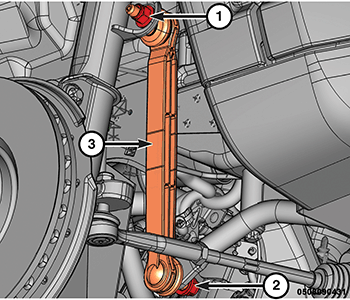

1. Place the stabilizer bar link upper joint stud through the hole in the strut, and install a NEW  upper stabilizer bar link nut (1).
2. Install the lower stabilizer bar link in the stabilizer bar and install a NEW  lower stabilizer bar link nut (2).
3. Tighten both of the stabilizer link nuts to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
4. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
5. Remove the support and lower the vehicle.
