Battery/Charging Systems - 3.6L
TORQUE SPECIFICATIONS - BATTERY/CHARGING SYSTEMS - 3.6L

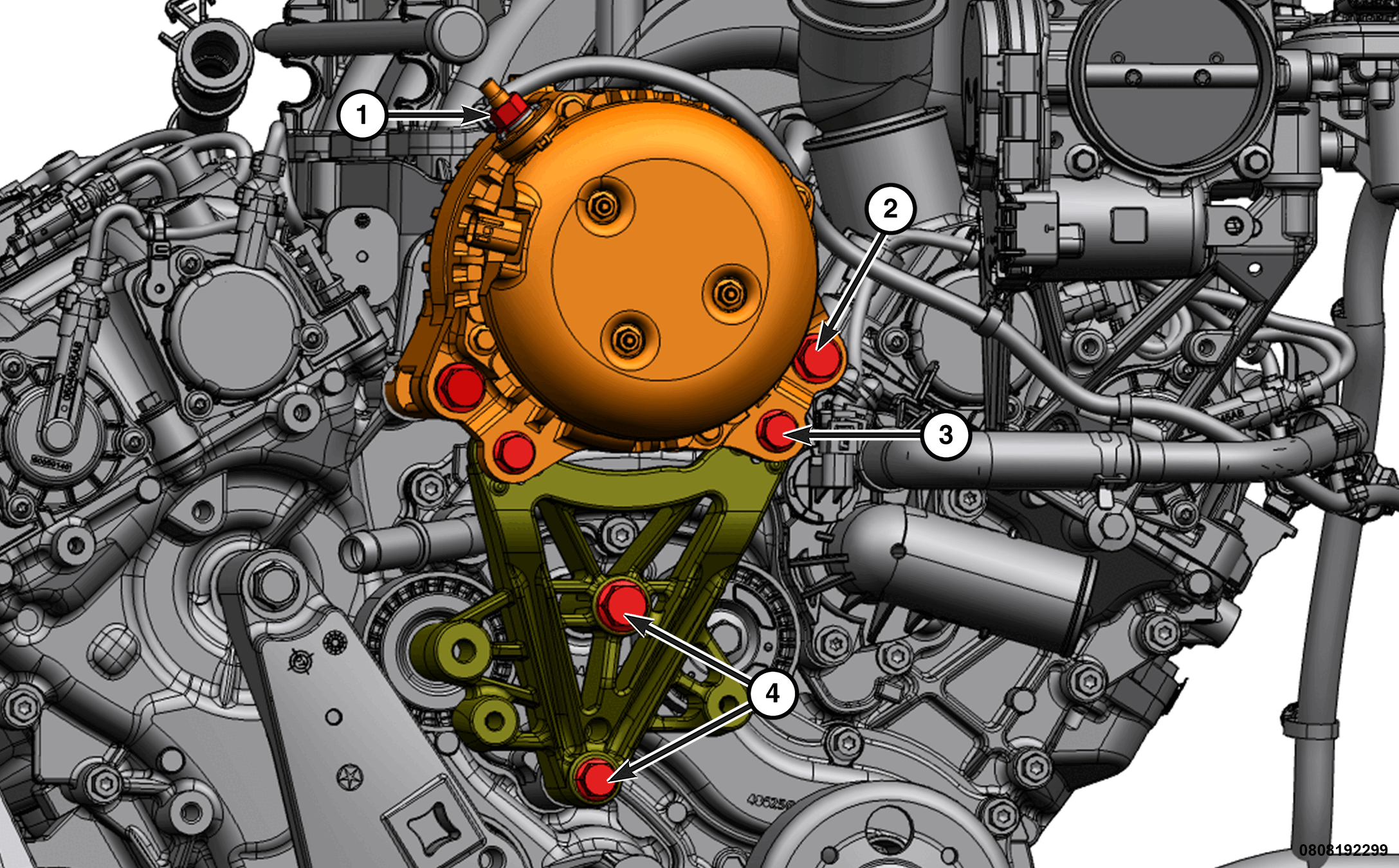

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Generator B+ Nut | 20 N.m (15 Ft. Lbs.) | - |
| 2 | Generator to Upper Engine Block 3.6L | 50 N.m (37 Ft. Lbs.) | - |
| 3 | Generator to Bracket | 24 N.m (28 Ft. Lbs.) | - |
| 4 | Generator Bracket to Cylinder Block | 55 N.m (41 Ft. Lbs.) | - |
| - | Generator Bracket to Cylinder Block | 24 N.m (28 Ft. Lbs.) | - |
