Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

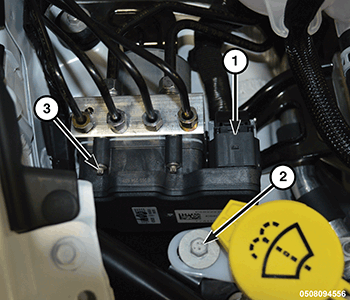

- Carefully place the Anti-lock Brake System (ABS) module in position on the hydraulic control unit (HCU).
- Install the four ABS module to HCU mounting bolts (3) and tighten securely.
- Connect the ABS electrical harness connector (1).
- Install the washer solvent fill tube into the top of the washer solvent reservoir, and install the mounting screw (2).
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- Perform the Verification Test and clear and faults. Refer to ABS VERIFICATION TEST .
