Removal And Installation: Removal
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION
.

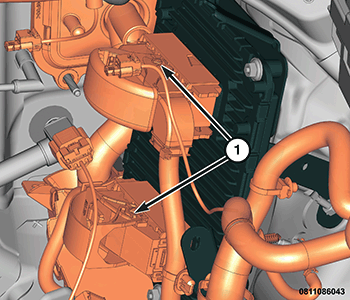

- Disconnect the electrical connections (1) from the Powertrain Control Module (PCM).

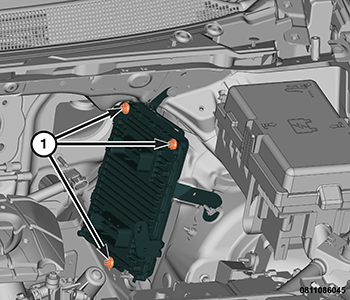

- Remove the three nuts (1) securing the PCM to the PCM bracket.
- Lift the PCM off of the bracket and remove the PCM from the engine compartment.
