Torque Specifications: Shifter
TORQUE SPECIFICATIONS - SHIFTER

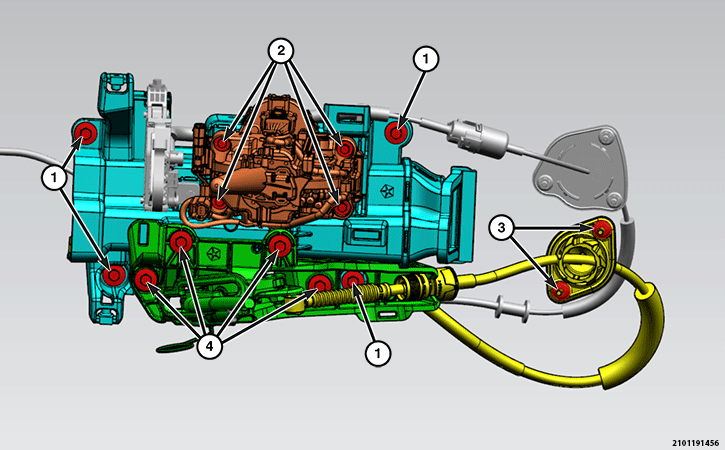

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Shifter Base to Floor Nuts | 6 N.m (53 In. Lbs.) | - |
| 2 | Transmission Shifter To Shifter Base Bolts | 5 N.m (44 In. Lbs.) | - |
| 3 | Transfer Case Shifter Cable Grommet to floor Nuts | 9 N.m (80 In. Lbs.) | - |
| 4 | Transfer Case Shifter To Shifter Base Bolts | 8 N.m (71 In. Lbs.) | - |
| Not Shown | Transfer Case Shift Knob | 3 N.m (27 In. Lbs.) | - |
| Not Shown | Transmission Shift Knob | 3 N.m (27 In. Lbs.) | - |
