Vacuum Pump

Courtesy of CHRYSLER GROUP, LLC

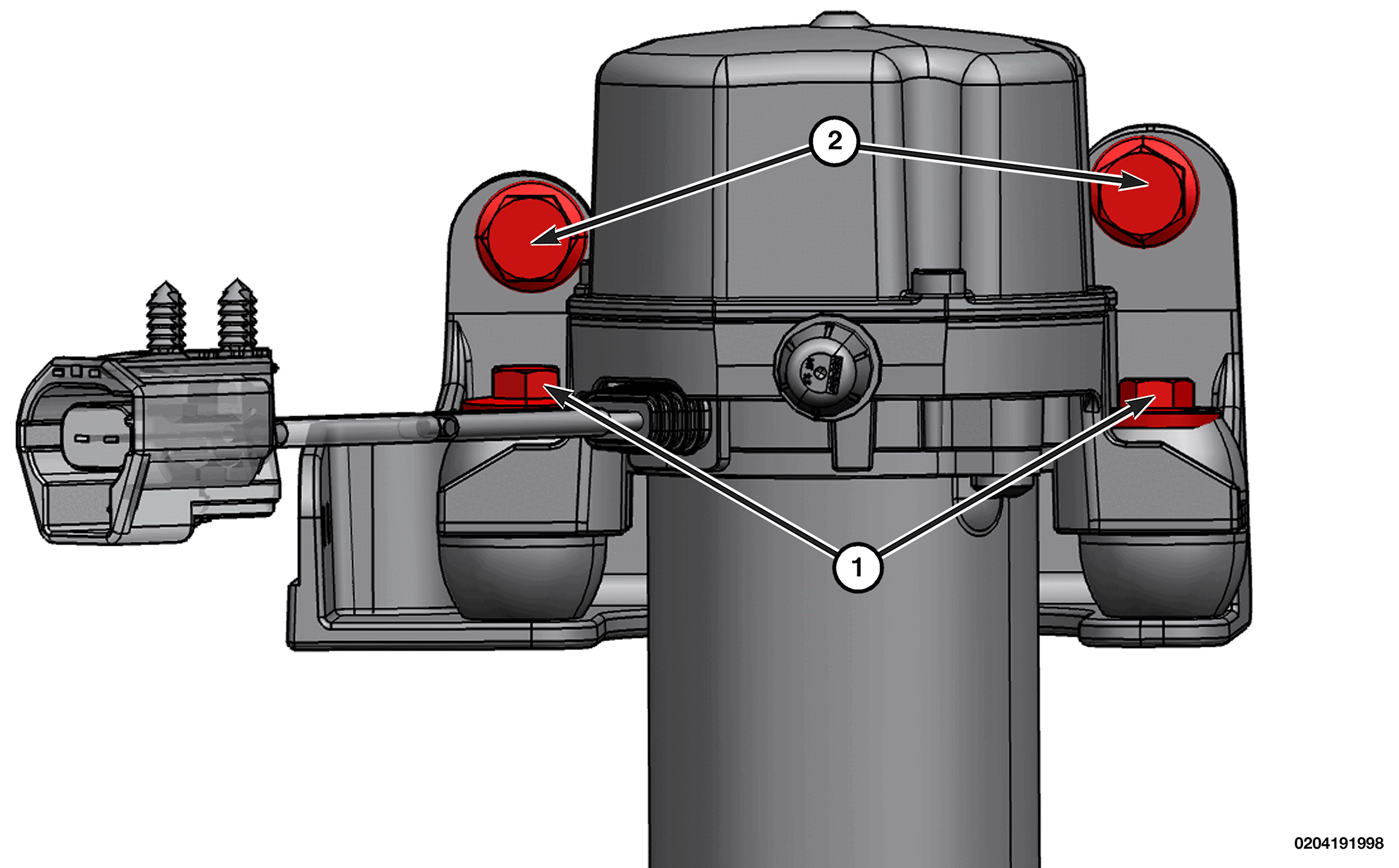

TORQUE SPECIFICATIONS - VACUUM PUMP

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Vacuum Pump Bolts	8 N. m (71 In. Lbs.)	-
2	Vacuum Pump Bracket Bolts	25 N. m (18 In. Lbs.)	-
