Spring Link

REMOVAL

NOTE:

The air suspension system can be disabled and enabled by using the Display Screen Module (DSM) in the vehicle under Tire Jack Mode, which is the preferred method. If the disable level control routine in the diagnostic scan tool is used, it will only disable the level control (automatic and manual) for that ignition cycle. The air suspension system can also be enabled by driving the vehicle above 19 km/h (12 mph). The air suspension must be disabled prior to lifting the vehicle or performing any work.

If equipped with air suspension, disable the air suspension system.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC

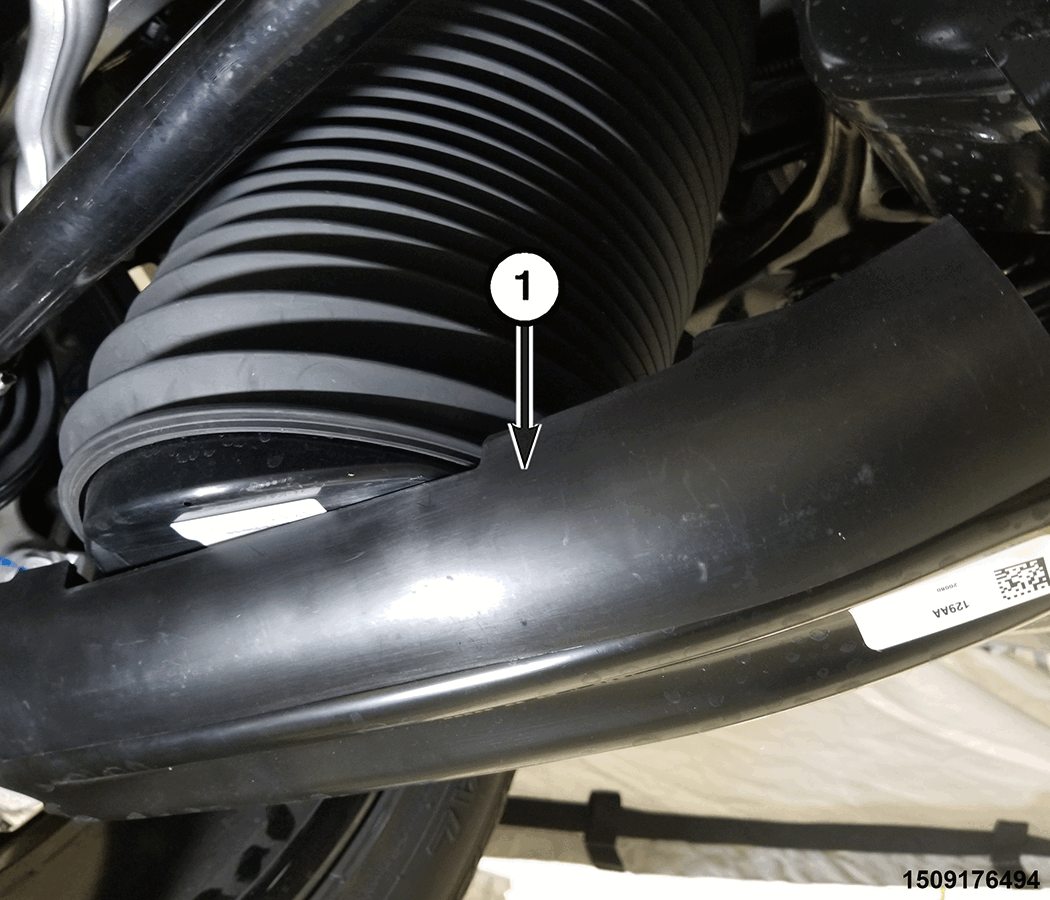

1 - Aero Shield
Use a suitable tool to pry the aero shield clips from the spring link, then remove the aero shield.
Remove the rear spring. Refer to SPRING(S), REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

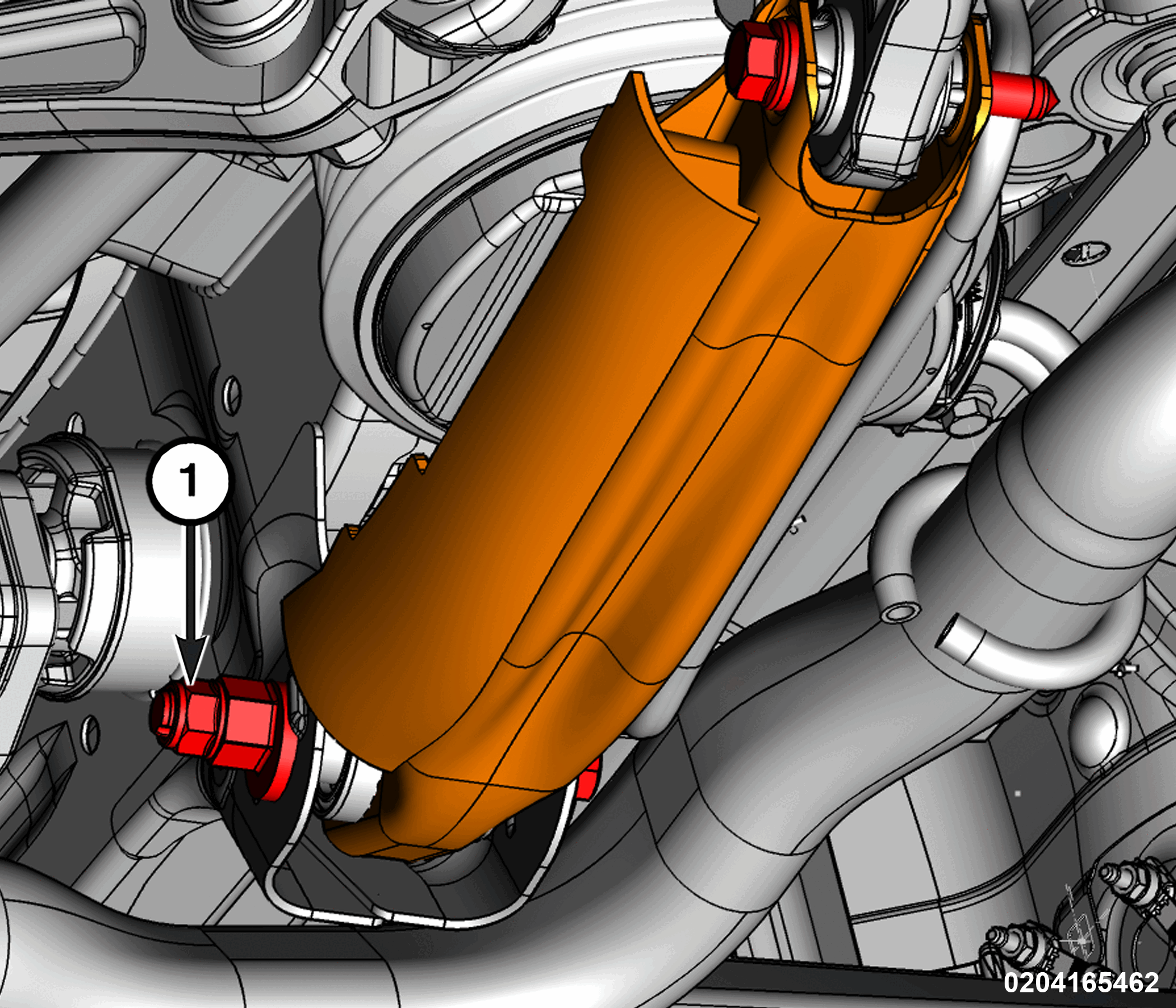

1 - Spring Link Inner Nut
Mark the relation of the adjustment eccentric and the subframe.
Remove the spring link inner nut, camber adjustment eccentrics and the spring link inner bolt.
Remove the spring link.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

During installation torque the following fasteners to specification:

Spring Link Inner Nut

200 N. m (148 Ft. Lbs.)

Fastener must be torqued with the vehicle at normal ride height.

NOTE:

In any instance where a bolt is through a rubber bushing, the bolt must be torqued with the vehicle at normal ride height.
