Sensor, Active Damping: Installation: Front

Courtesy of CHRYSLER GROUP, LLC

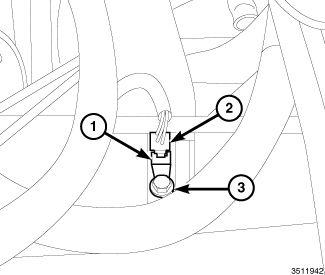

1. Position the sensor, install the sensor retaining bolt (3) and tighten to proper specifications. Refer to TORQUE SPECIFICATIONS  .
2. Connect the wiring harness connector (2).
3. Seat the terminal locking tab (1).
4. Remove the supports and lower the vehicle.
