Hitch, Trailer: Installation

Courtesy of CHRYSLER GROUP, LLC

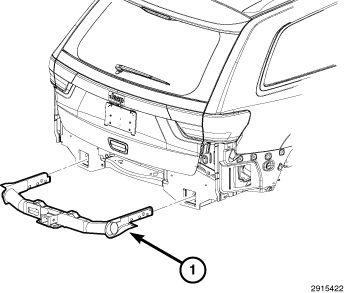

Install the trailer hitch (1).

Courtesy of CHRYSLER GROUP, LLC

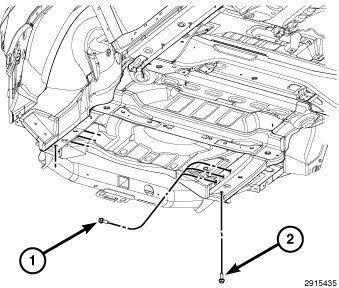

Install the trailer hitch bolts (1 and 2)
Tighten the six horizontal trailer hitch bolts (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Tighten the two vertical trailer hitch bolts (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

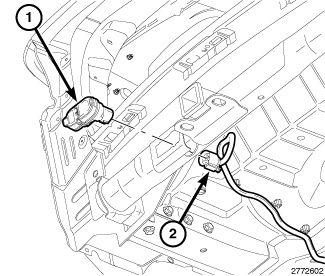

Connect the trailer wire harness connector (2).
NOTE:
7-way connector shown, 4 way similar.
Install the rear fascia. Refer to FASCIA, REAR, INSTALLATION .
