Switch, Lumbar Control: Installation

NOTE:

Left hand drive model shown. Right hand drive model similar.

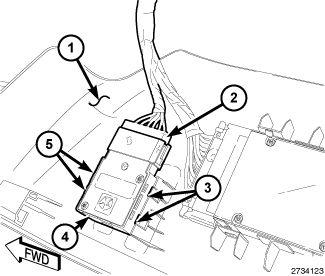

GC0145875Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wiring harness connector (2) to the power lumbar support switch (4). Make sure the connector is fully engaged.
  2. Position the power lumbar support switch to the seat cushion side trim panel (1) and engage the retaining tabs (3 and 5) to the trim panel. Make sure the retaining tabs are fully engaged.

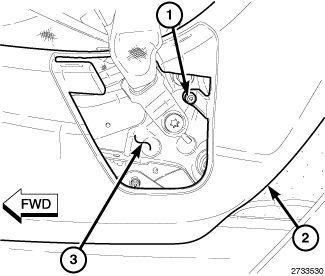

    GC0145729Courtesy of CHRYSLER GROUP, LLC
  3. Position the seat cushion side trim panel (2) to the seat.
  4. Slide the seat cushion side trim panel rearward and engage the trim panel to the three mounting brackets located on the outboard seat frame (3).
  5. Install and securely tighten the seat cushion side trim panel screw (1) to the seat frame.

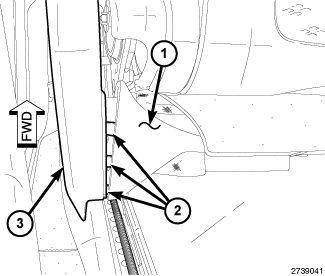

    GC0145731Courtesy of CHRYSLER GROUP, LLC
  6. Carefully engage the tabs (2) securing the seat cushion side trim panel (3) to the rear of the seat (1). Make sure the retaining tabs are fully engaged.

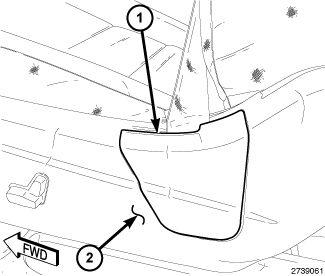

    GC0145732Courtesy of CHRYSLER GROUP, LLC
  7. Install the seat belt anchor trim panel (1) onto the outboard seat cushion side trim panel (2). Make sure the trim panels are fully engaged.
  8. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  9. Verify the power seat for proper operation.
