Switch, Memory: Installation

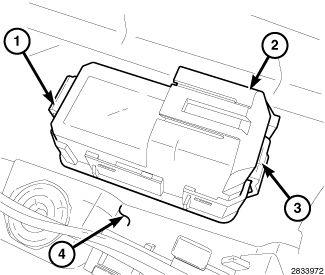

GC0146080Courtesy of CHRYSLER GROUP, LLC
  1. Install the memory seat switch (2) into the driver door trim panel (4), pressing the switch firmly into the trim panel until the retaining tabs (1 and 3) are fully engaged.

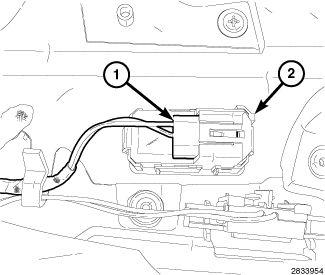

    GC0146079Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wiring harness connector (1) to the memory seat switch (2).
  3. Install the driver door trim panel. Refer to PANEL, DOOR TRIM, INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  5. Perform the Power Seat System Verification Test. Refer to POWER SEAT SYSTEM VERIFICATION TEST .
  6. Verify the memory seat system for proper operation.
