Negative Battery

Position the negative battery cable for installation.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Shown with seat removed for clarity.

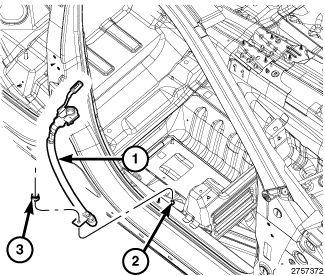

Secure the negative battery cable (1) to the body (2) using the retainer (3).
Connect the negative battery cable to the battery.

Courtesy of CHRYSLER GROUP, LLC
Install the battery cover (1).
Position back the passenger front seat.
