Sensor, Intelligent Battery (IBS): Removal

WARNING:

Do not remove the captive nut, doing so will cause the stud to break.

Remove the components to access the battery. Refer to BATTERY, SUPPLEMENTAL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the ground terminal nut (2) and position the ground cable eyelet away from the battery terminal.
Disconnect the Intelligent Battery Sensor (IBS) wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC
Loosen
the negative battery terminal nut (1).

NOTE:
Do not remove the captive nut, doing so will cause the stud on IBS pole clamp to break.

Courtesy of CHRYSLER GROUP, LLC

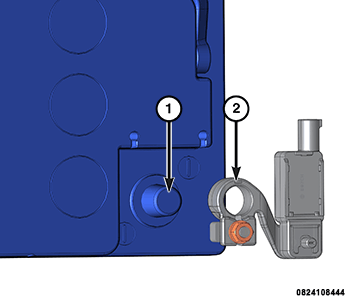

Using the appropriate battery terminal puller, remove the battery cable terminal with IBS (2) from the negative battery post (1).
NOTE:
Never pry the IBS to remove it from the pole clamp. This will damage the IBS and will need to be replaced.
