Sensor, Ambient Temperature: Installation

Courtesy of CHRYSLER GROUP, LLC

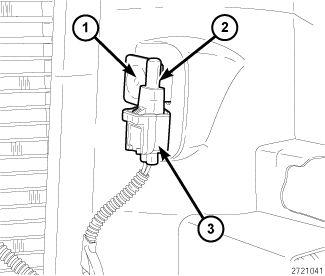

1. Position the ambient temperature sensor (2) into the vehicle and install the push pin type retainer (1).
2. Connect the wiring harness connector (3) to the ambient temperature sensor.
3. Install the radiator grille assembly. Refer to GRILLE, INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
