3.0L/3.6L Left

  1. Install NEW  gaskets.
    GC0199693Courtesy of CHRYSLER GROUP, LLC

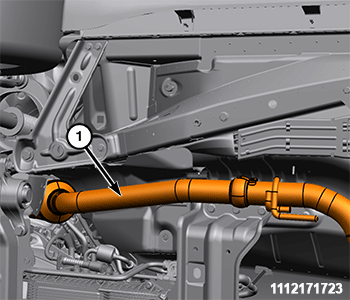

  2. Install the left catalytic converter assembly (1) in the vehicle.
    GC0199695Courtesy of CHRYSLER GROUP, LLC

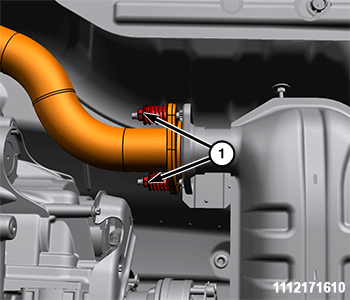

  3. Install the catalytic converter assembly to muffler flange and tighten the spring nuts (1) to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
    GC0199702Courtesy of CHRYSLER GROUP, LLC

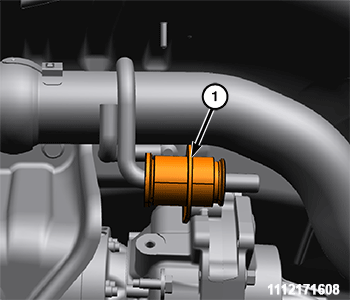

  4. For 4X4 models, Install the exhaust isolator (1) and the tighten the bolts to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
    GC0199691Courtesy of CHRYSLER GROUP, LLC

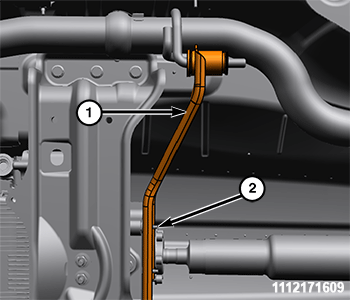

  5. For 2WD models, Install the exhaust isolator (1) and tighten the bolts (2) to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
    GC0199696Courtesy of CHRYSLER GROUP, LLC

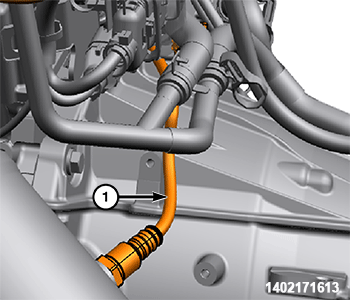

  6. Connect the downstream oxygen sensor wire harness connector (1).
    GC0199703Courtesy of CHRYSLER GROUP, LLC

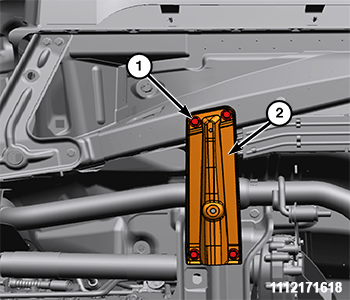

  7. Install the transmission crossmember reinforcement bracket (2) and tighten the bolts (1) to the proper specifications.

    Refer to TORQUE SPECIFICATIONS .

  8. Remove the support and lower the vehicle.
    GC0199684Courtesy of CHRYSLER GROUP, LLC

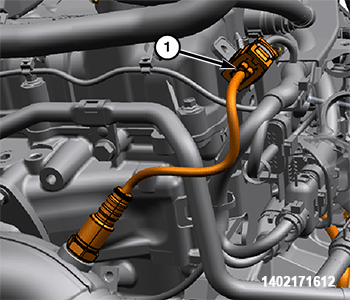

  9. Connect the upstream oxygen sensor wire harness connector (1).
    GC0199704Courtesy of CHRYSLER GROUP, LLC

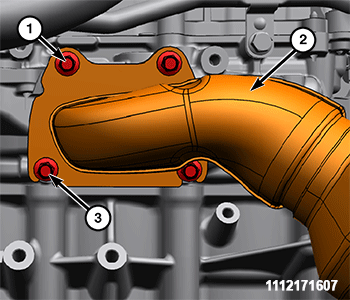

  10. Install the upper catalytic converter flange bolts (1) and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
  11. Tighten the lower flange bolts (3) to the proper specifications Refer to TECHNICAL SPECIFICATIONS .
  12. Connect the negative battery cable(s).
