Inlet Air Temperature Sensor

Courtesy of CHRYSLER GROUP, LLC

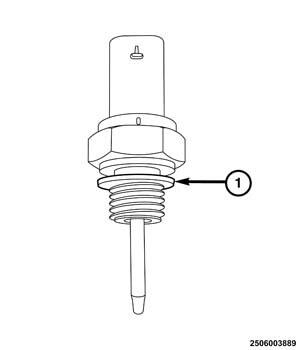

Inspect the inlet air temperature sensor sealing washer (1) and replace if necessary.

Courtesy of CHRYSLER GROUP, LLC
Install the inlet air temperature sensor (2) and tighten to 20 N.m (15 ft. lbs.).
Connect the inlet air temperature sensor wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
