Injector(S), Fuel: Installation: 3.6L
- Lightly lubricate NEW
O-ring seals (1) with engine oil and install on the fuel injector (2).NOTE:
Number 2 fuel injector installation shown, all other fuel injectors similar.
- Install the fuel injectors (1) to the fuel rail (2).

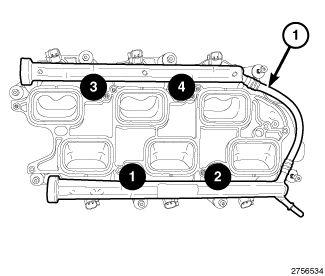

- Install the fuel rail (1), upper inlet manifold and air inlet hose. Refer to RAIL, FUEL, INSTALLATION .
- Connect the negative battery cable.
- Start the engine and check for leaks.
