Engine Block: FLEXPLATE: Removal

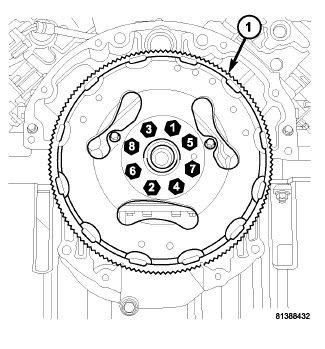

GC0080310Courtesy of CHRYSLER GROUP, LLC
  1. Remove the transmission. Refer to REMOVAL .
  2. Using the sequence shown, remove the flexplate (1) retaining bolts.
    CAUTION:

    Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.

  3. Remove the flexplate (1).
