Insulator, Engine Mount, Front: Installation

Courtesy of CHRYSLER GROUP, LLC

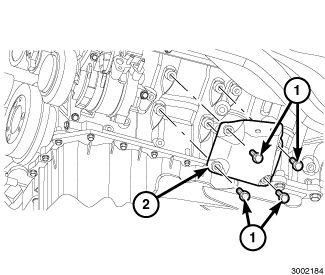

1. If removed, position the engine mount to engine block mounting brackets, install the retaining bolts and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

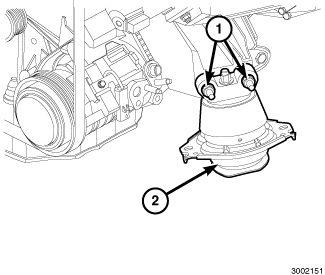

2. Position the engine mounts (2), Install the retainers (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
3. If the right side engine mount was removed. Install the generator. Refer to GENERATOR, INSTALLATION .
4. Lower the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

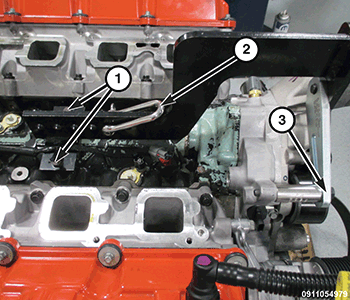

5. Lower the Engine Support Fixture (special tool #8534C, Fixture, Driveline Support) (3) until the engine mounts are seated in the engine cradle.
6. Remove the Engine Lift Fixture (special tool #8984C, Fixture, Engine Lifting) (1), Engine Lift Adapter (special tool #8984-UPD, Adapter, Engine Lift) (2) and the Engine Support Fixture (special tool #8534C, Fixture, Driveline Support) (3).
7. Install the Variable Valve Timing Solenoid (VVTS). Refer to INSTALLATION  .
8. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Left side shown, right side similar.

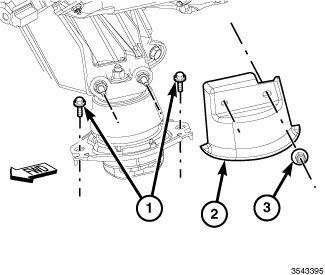

9. Install both left/right engine mount lower retaining bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
10. Position both left/right engine mount heat shields (2), install the retaining nuts (3) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
11. Position the front skid plates.
12. Install the A/C compressor.
13. Lower the vehicle.
14. Position the engine oil dipstick tube, install the retaining nut at the right exhaust manifold.
15. Install the supercharger assembly. Refer to SUPERCHARGER, INSTALLATION .
16. Connect the negative battery cable.
