Chain And Sprockets, Timing: Installation

Courtesy of CHRYSLER GROUP, LLC

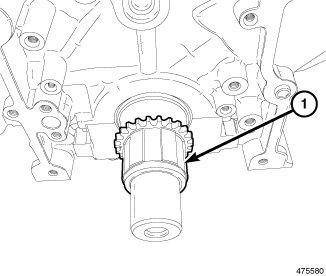

1. Install the crankshaft sprocket (1) and position halfway onto the crankshaft.

   Courtesy of CHRYSLER GROUP, LLC

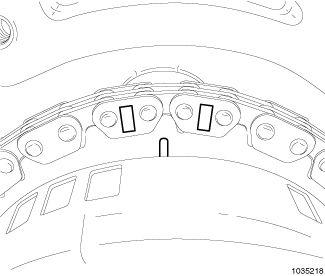

2. While holding the camshaft phaser in hand, position the timing chain on the camshaft phaser and align the timing marks as shown.

   Courtesy of CHRYSLER GROUP, LLC

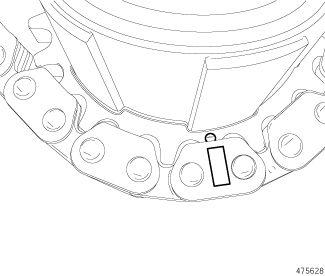

3. While holding the camshaft phaser and timing chain in hand, position the timing chain on the crankshaft sprocket and align the timing mark as shown.

   Courtesy of CHRYSLER GROUP, LLC

4. Align the slot in the camshaft phaser with the dowel on the camshaft and position the camshaft phaser on the camshaft while sliding the crankshaft sprocket into position.
5. Install the camshaft phaser retaining bolt (1) finger tight.

   Courtesy of CHRYSLER GROUP, LLC

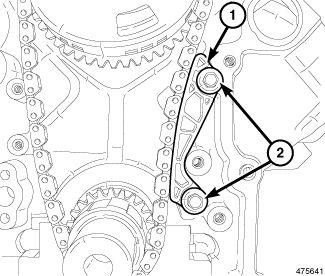

6. If removed, install the timing chain guide (1) and tighten the bolts (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

7. If removed, install the timing chain tensioner (2) and tighten the bolts (3) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
8. If installed, remove the Tensioner Pin (special tool #8514A, Pins, Tensioner) (1) from the chain tensioner arm.

   Courtesy of CHRYSLER GROUP, LLC

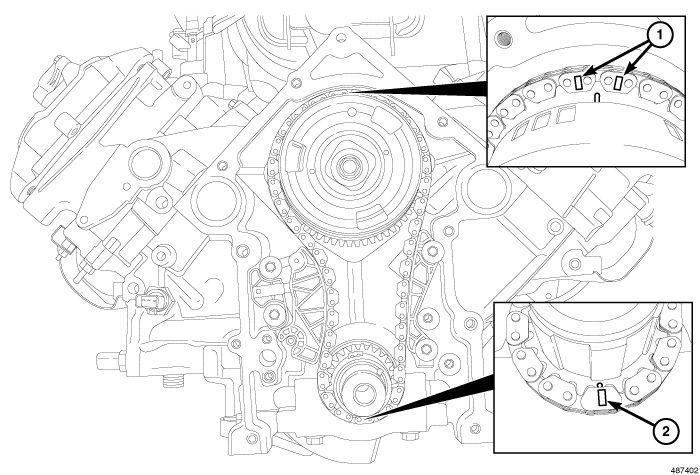

9. Using care, rotate the crankshaft to verify the alignment of the timing marks (1, 2). If the timing marks do not line up, remove the camshaft sprocket and realign.

   Courtesy of CHRYSLER GROUP, LLC

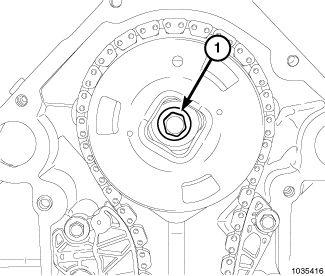

10. Tighten the camshaft phaser bolt (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
11. Install the engine oil pump. Refer to INSTALLATION  .
12. Start the engine and check for leaks.
