Sensor, Water In Fuel: Installation

Courtesy of CHRYSLER GROUP, LLC

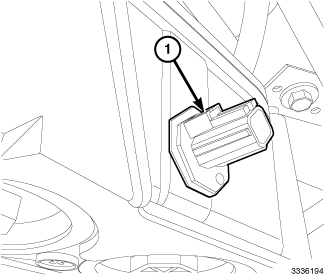

1. The Water In Fuel sensor (1) is NOT  a serviceable component and is only service as a complete fuel filter/water separator assembly. Refer to SEPARATOR AND FILTER, FUEL AND WATER, INSTALLATION .
