Tube, Fuel Tank Filler: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Position the fuel filler tube (1) into the rubber grommet (2) of the fuel filler housing (3).

   Courtesy of CHRYSLER GROUP, LLC

2. Position the fuel filler tube onto the upper and lower support brackets.
3. Position the tire pressure module onto the fuel filler tube upper support bracket, install the retaining nuts (1) and tighten to 9 N.m (80 in. lbs.).
4. Position the fuel tank vapor line into the fuel filler tube retainer (2).
5. Connect the On-Board Refueling Vapor Recovery (ORVR) quick-connect fitting (3).
6. Install the retaining nut (4) to the fuel filler tube lower bracket and tighten to 7 N.m (62 in. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

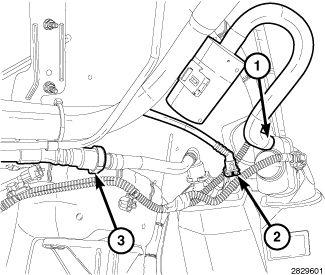

7. Connect the fuel tank vapor line quick-connect fitting (3).
8. Connect the vapor purge line quick-connect fitting (2) to the EVAP canister.
9. Connect the Evaporative System Integrity Monitor (ESIM) fresh air hose (1) to the ESIM.

   Courtesy of CHRYSLER GROUP, LLC

10. Install the left rear wheelhouse splash shield (3). Refer to INSTALLATION - REAR .
11. Install the left rear wheel and tire.

    Courtesy of CHRYSLER GROUP, LLC

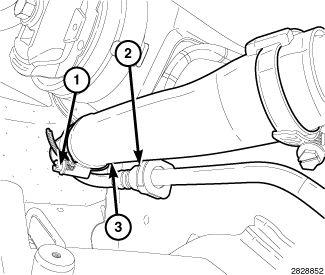

12. Connect the fuel filler hose (3) to the fuel filler tube.
13. Connect the fuel tank vapor line quick-connect fitting (2).
14. Position the fuel filler tube hose clamp (1) and tighten to 3 N.m (30 in. lbs.).

    Courtesy of CHRYSLER GROUP, LLC

15. Connect the negative battery cable (2).
16. Lower the vehicle.
17. Start the engine and check for leaks.
