Sensor, Mass Airflow (MAF): Installation

Courtesy of CHRYSLER GROUP, LLC

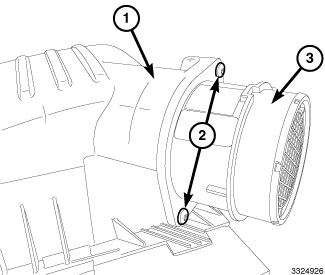

1. Install the Mass Air Flow (MAF) sensor (3) into THE air cleaner housing (1) and securely tighten the screws (2).

   Courtesy of CHRYSLER GROUP, LLC

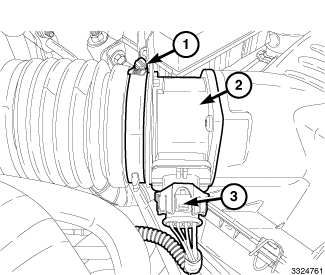

2. Connect the MAF sensor wiring harness connector (3).
3. Connect the air intake hose to the MAF sensor (2) and securely tighten the clamp (1).
4. Connect the negative battery cable.
5. Using a scan tool, perform Mass Air Flow Sensor Reset  function found under ENGINE MISC. FUNCTIONS.
