Injector(S), Fuel: Description

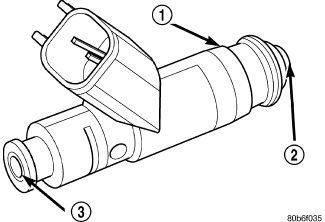

GC0082920

Courtesy of CHRYSLER GROUP, LLC

1 - FUEL INJECTOR

2 - NOZZLE

3 - TOP (FUEL ENTRY)

An individual fuel injector (1) is used for each individual cylinder.
