Sensor, Crankcase Pressure: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover (1).

   Courtesy of CHRYSLER GROUP, LLC

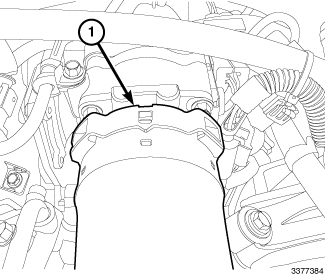

3. Disconnect the Charge Air Cooler (CAC) hose (1) from the EGR air flow control valve.

   Courtesy of CHRYSLER GROUP, LLC

4. Disconnect the oil vapor pressure sensor wire harness connector (3).
5. Detach the oil vapor pressure sensor wire harness (5) from mounting bracket (1).
6. Remove the nuts (7) and the oil vapor pressure sensor (2).
7. Disconnect the oil vapor pressure sensor hose (6).
