Sensor, Fuel Tank Pressure: Removal
- Disconnect and isolate the negative battery cable.
- Remove the fuel tank. Refer to TANK, FUEL, REMOVAL
.

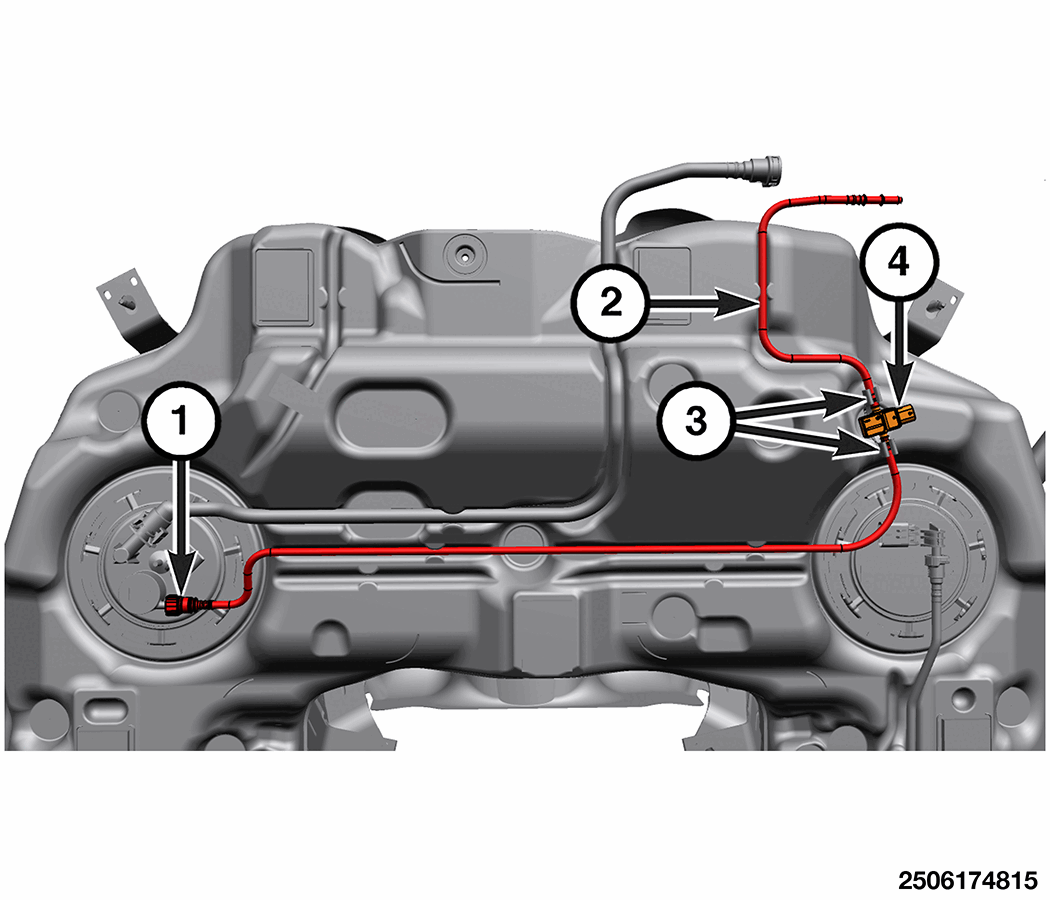

- Disconnect the fuel tank pressure sensor wire harness connector (1).
- Remove the fuel vapor line from the three retainers (2).

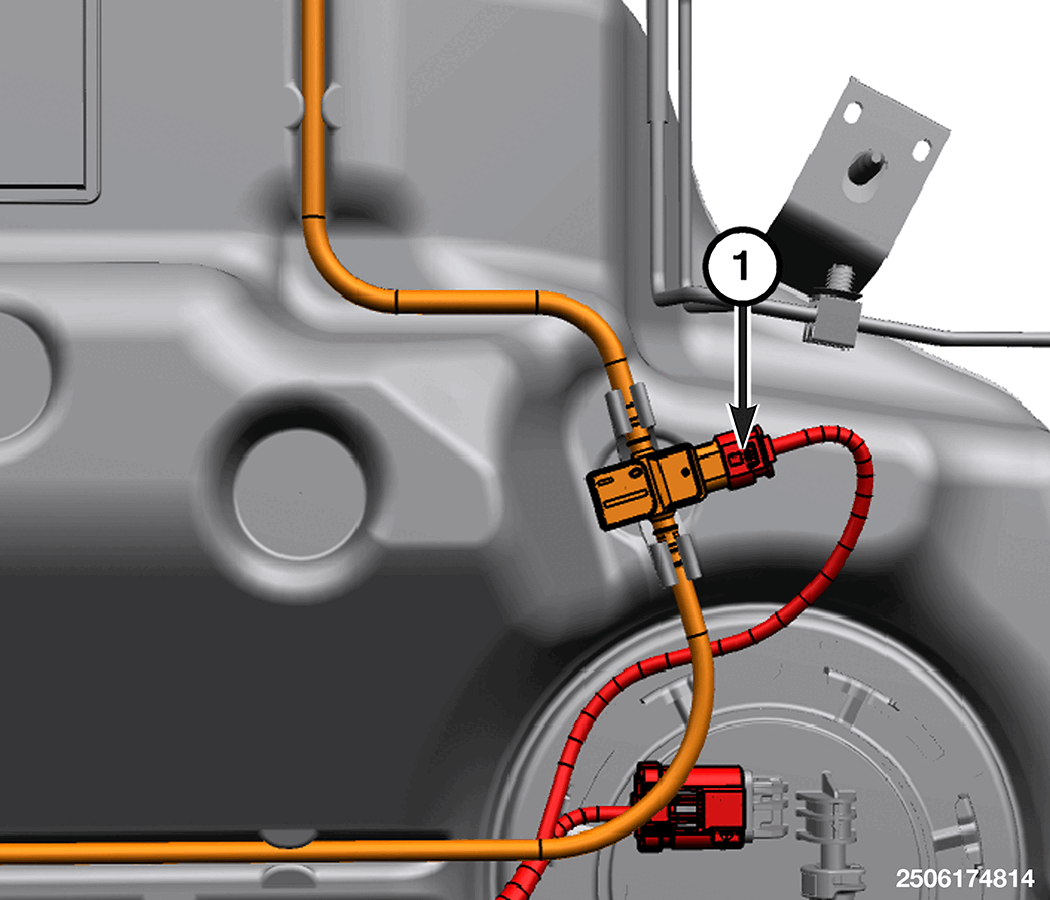

- Disconnect the fuel vapor line quick connect fitting (1).
- Spreading the tabs (3) and lifting straight up on the fuel tank pressure sensor (4) and remove from the fuel tank.
