Cover(S), Engine Timing: Installation

WARNING: This page is about a different variant/trim than selected.
GC0081770Courtesy of CHRYSLER GROUP, LLC
NOTE:

Always install a NEW  timing cover gasket.

  1. Clean the timing cover and engine block sealing surfaces.

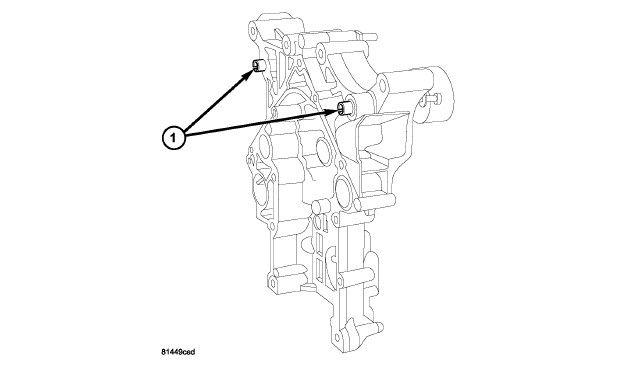

  2. Verify that the slide bushings (1) are installed in the timing cover.
    GC0184064Courtesy of CHRYSLER GROUP, LLC

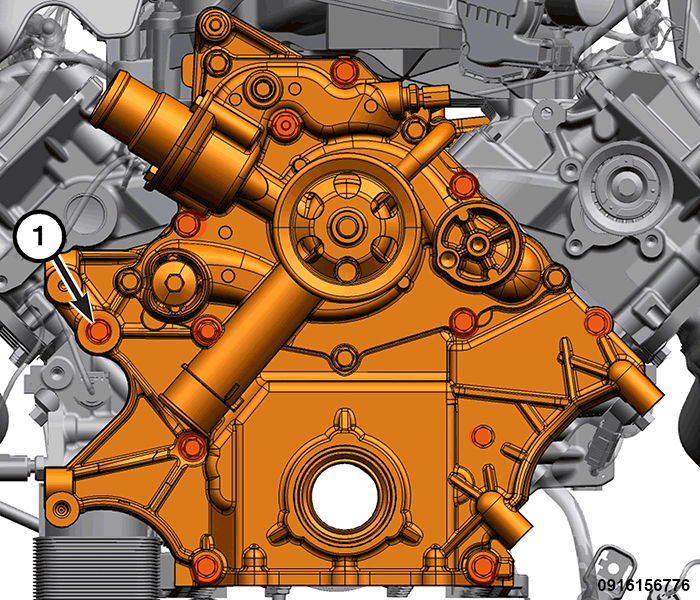

  3. Using a NEW  gasket, install the timing cover and tighten the bolts to 28 N.m (21 ft. lbs.).
    CAUTION:

    To prevent severe damage to the crankshaft, damper, and damper installer, thoroughly clean the damper bore and the crankshaft nose before installing damper.

  4. Install the generator. Refer to 5.7L .
    GC0146197Courtesy of CHRYSLER GROUP, LLC

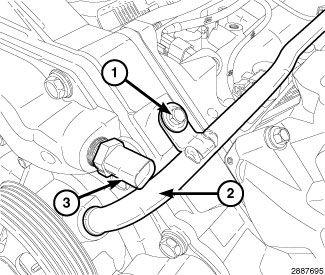

  5. Install the heater tube (2) into the water pump and tighten the bolt (1) to 12 N.m (9 ft. lbs.).
  6. Install the air cleaner resonator support bracket to the water pump.
  7. Connect the coolant temperature sensor (3) wire harness connector.
    GC0148461Courtesy of CHRYSLER GROUP, LLC

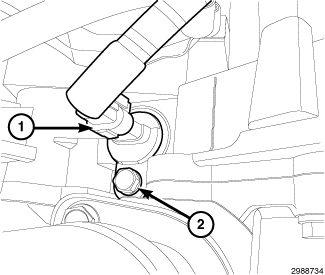

  8. Install the Camshaft Position Sensor (CMP) wire harness connector (1).
  9. Install the A/C compressor. Refer to COMPRESSOR, A/C, INSTALLATION .
    GC0184543Courtesy of CHRYSLER GROUP, LLC

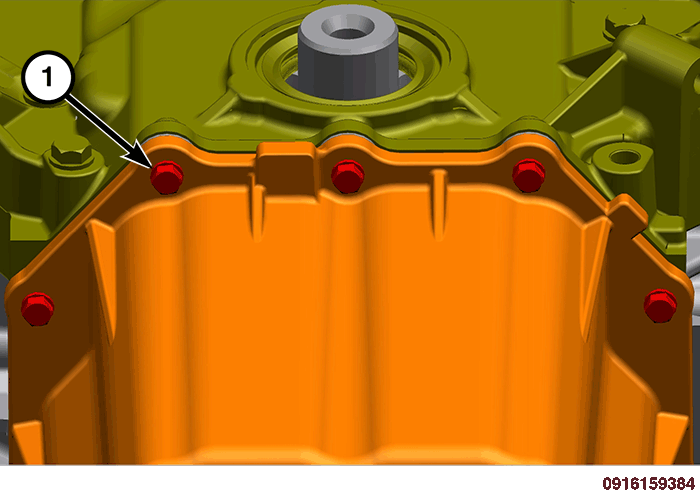

  10. Install the front oil pan to engine timing cover bolts (1) and tighten to 12 N.m (9 ft. lbs.).
    GC0146185Courtesy of CHRYSLER GROUP, LLC

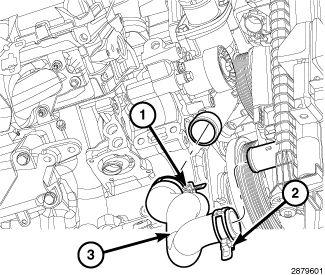

  11. Connect the lower radiator hose (3) to the radiator and secure the hose clamp (2).
  12. Connect the lower radiator hose (3) to the water pump and secure hose clamp (1).
  13. Install the vibration damper. Refer to INSTALLATION  .
  14. Install the transmission skid plate. Refer to INSTALLATION .
  15. Install the front suspension skid plate. Refer to INSTALLATION .
  16. Install the front skid plate. Refer to INSTALLATION .
  17. Change the engine oil filter and fill the crankcase with the specified type and amount of engine oil. Refer to STANDARD PROCEDURE - ENGINE OIL SERVICE  .
  18. Connect the battery negative cable.
  19. Start the engine and check for leaks.
