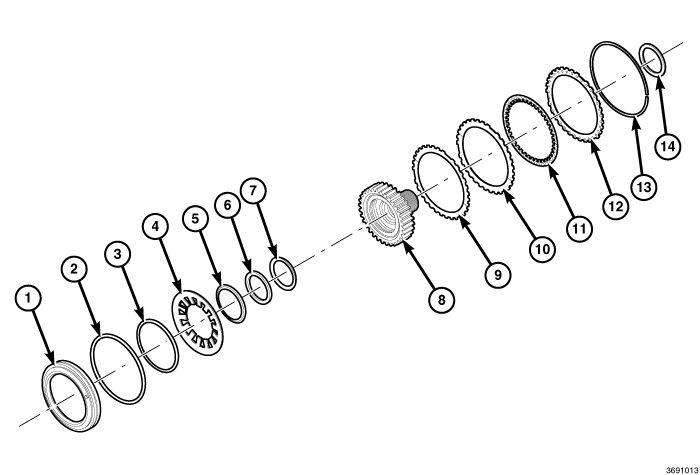

Clutch, A: Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - A CLUTCH PISTON

2 - LIP SEAL

3 - LIP SEAL

4 - RETURN SPRING

5 - RING

6 - BEARING

7 - WASHER

8 - SUN GEAR

9 - WAVE SPRING

10 - SEPARATOR PLATE

11 - FRICTION PLATES

12 - END PLATE

13 - SNAP RING

14 - SELECTABLE SHIM

NOTE:

If clutch discs are being replaced, soak in 8HP trans fluid before assembly.

Courtesy of CHRYSLER GROUP, LLC

Insert the clutch A piston and the belleville spring (1) into the housing.

Courtesy of CHRYSLER GROUP, LLC
Position the oil pump housing assembly (4) in a suitable arbor press.
Using (special tool #8285, Compressor, Spring) (1), press on the fingers of the clutch A belleville spring to remove tension, and install the two halves of the split retainer ring (2).

Courtesy of CHRYSLER GROUP, LLC
Install the hub (3).
Install the clutches and spacers (4).
Install the snap ring (2).
Install the outer ring (1) (below clutch B piston).

Courtesy of CHRYSLER GROUP, LLC
Position the clutch B piston alignment tab (2) above the notch and install the clutch B piston (1) on the assembly.
Install the transmission oil pump. Refer to PUMP, TRANSMISSION OIL, INSTALLATION .
