Clutch, D: Assembly
| 1. Friction plate |
| 2. Backing plate |
| 3. Steel plate |
| 4. Wave plate |
NOTE:
If clutch discs are being replaced, soak them in 8HP trans fluid before assembly.

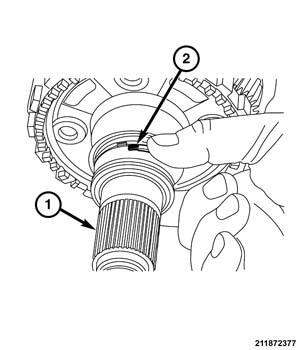

- Install the clutch D carrier seal rings (2).
- Place the clutch D in a suitable arbor press.

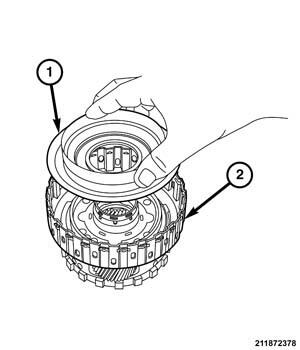

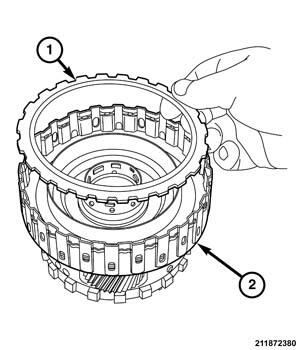

- Coat the O-rings with 8HP fluid on the clutch D (2) piston (1) and install the piston (1) onto the carrier.

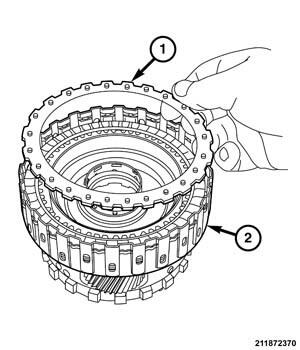

- Install the wave plate (1) into the carrier first.

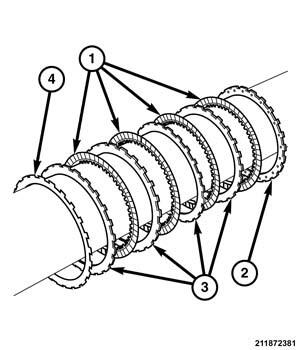

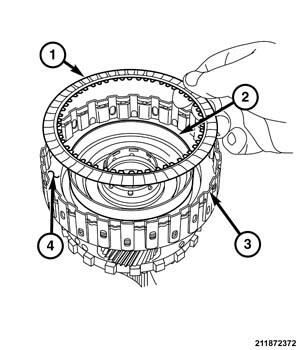

- Install the frictions and steels (1) into the carrier (3).

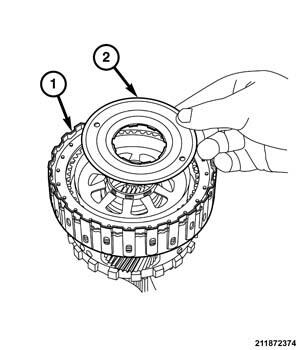

- Install the backing plate (1) last onto the carrier.

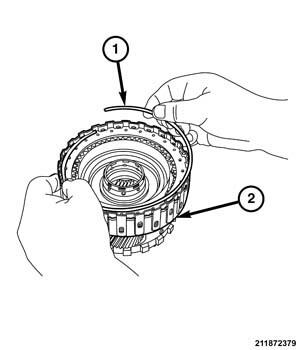

- Install the proper selective snap ring (1) onto the clutch D carrier (2).

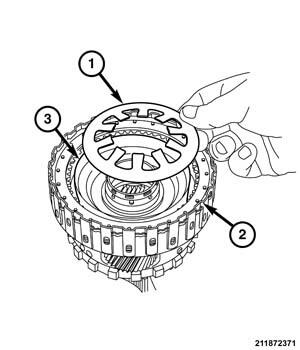

- Install the belleville spring (1).
- Place the oil baffle (2) onto the hub of the clutch D carrier (1) and align the locking tabs.

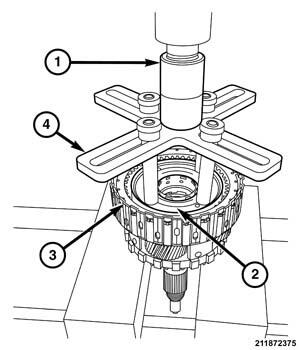

- Using the (special tool #8901A, Pressing Tool) (4), compress the oil baffle (2) enough the clear the locking tabs.

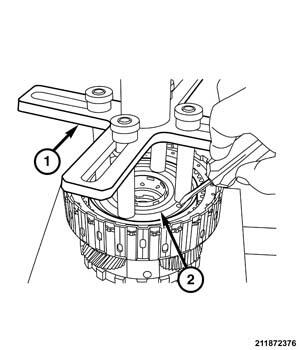

- Compress the oil baffle (2) enough to clear the lock tabs, and rotate the baffle (2) to the locked position.
- Release the arbor press.
