Pump, Transmission Oil: Assembly

Courtesy of CHRYSLER GROUP, LLC

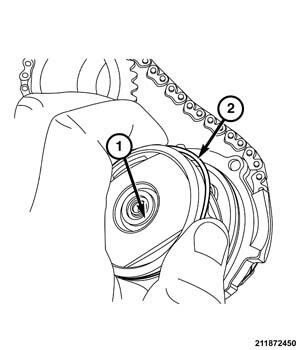

1. Install the transmission oil pump seal (1).
2. Install the transmission oil pump O-ring (2).

   Courtesy of CHRYSLER GROUP, LLC

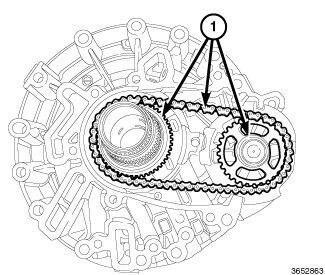

3. Carefully install the drive sprocket, chain and pump body (1) as an assembly into the oil pump housing.

   Courtesy of CHRYSLER GROUP, LLC

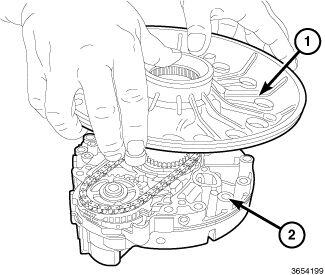

4. Set the pump cover (1) onto the oil pump housing (2).

   Courtesy of CHRYSLER GROUP, LLC

5. Install NEW  oil pump housing bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

6. Install NEW  oil pump housing inner (1) and outer (2) O-rings.

   Courtesy of CHRYSLER GROUP, LLC

7. Install a NEW  clutch A piston seal (2) and install the clutch A piston (1).

   Courtesy of CHRYSLER GROUP, LLC

8. Install the plate and clutch A belleville spring (1).

   Courtesy of CHRYSLER GROUP, LLC

9. Position the transmission oil pump housing assembly (4) in a suitable arbor press.
10. Using (special tool #8285, Compressor, Spring) (1), press on the fingers of the piston belleville spring to remove tension, and install the two halves of the split retainer ring (2).

    Courtesy of CHRYSLER GROUP, LLC

11. Install the hub (3).
12. Install the clutches and spacers (4).
13. Install the snap ring (2).
14. Install the outer ring (1) (clutch B piston).

    Courtesy of CHRYSLER GROUP, LLC

15. Position the clutch B piston alignment tab above the notch (2) and install the clutch B piston (1) on the assembly.
16. Install the transmission oil pump. Refer to PUMP, TRANSMISSION OIL, INSTALLATION .
