Removal And Installation: Installation

  1. Position the stabilizer bar to the crossmember.

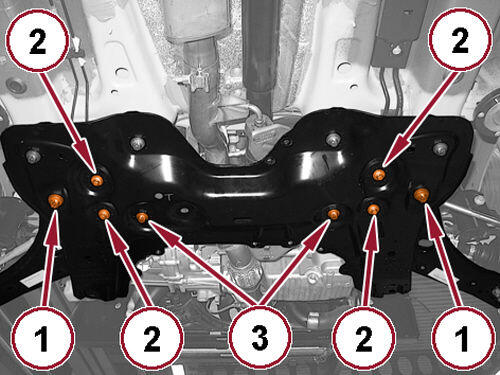

    GC0164505Courtesy of CHRYSLER GROUP, LLC
  2. Install the front stabilizer bar bolts (2) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  3. Connect the stabilizer bar links to the stabilizer bar. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
  4. Install the front crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
