Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  3. Remove the upstream oxygen sensor. Refer to SENSOR, OXYGEN, REMOVAL AND INSTALLATION .
    GC0164856Courtesy of CHRYSLER GROUP, LLC
  4. Remove the fasteners (1a) and (1b), and the exhaust heat shield (1c).
  5. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
    GC0164459Courtesy of CHRYSLER GROUP, LLC
  6. Remove the retaining clips (1a) and disconnect the transmission oil cooler line (1b).
  7. Plug and seal the ends of the transmission cooler and lines to prevent oil leakage and moisture, contaminants, or impurities from entering the system.
    GC0165116Courtesy of CHRYSLER GROUP, LLC
  8. Release the tabs (1a) and remove the pressurized coolant bottle (1b).
    GC0165167Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect the resistor wire harness connector (1a).
  10. Disconnect the cooling fan wire harness connector (1b).
  11. Detach the wire harness retainer (1c) from the fan shroud.
  12. Open the retainers (2b) and detach the cooler lines from the retainer.

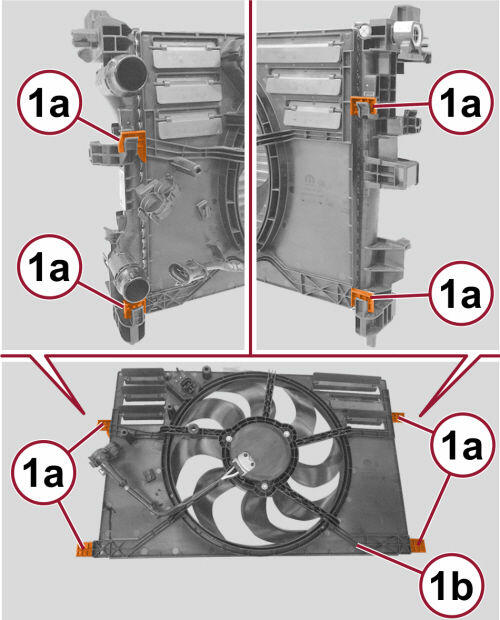

    GC0164973Courtesy of CHRYSLER GROUP, LLC
  13. Release the retaining brackets (1a) and remove the cooling fan (1b).

INSTALLATION

GC0164973Courtesy of CHRYSLER GROUP, LLC
  1. Install the cooling fan (1b) and secure the retaining brackets (1a).
    GC0165167Courtesy of CHRYSLER GROUP, LLC
  2. Attach the cooler lines to the retainer and close the retainer (2b).
  3. Attach the wire harness retainer (1c) to the fan shroud.
  4. Connect the cooling fan wire harness connector (1b).
  5. Connect the resistor wire harness connector (1a).
    GC0165116Courtesy of CHRYSLER GROUP, LLC
  6. Install the pressurized coolant bottle (1b) and secure the tabs (1a).
    GC0164459Courtesy of CHRYSLER GROUP, LLC
  7. Remove the plugs from the transmission cooler and lines.
  8. Connect the transmission oil cooler lines (1b) and the retaining clips (1a).
  9. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
    GC0164856Courtesy of CHRYSLER GROUP, LLC
  10. Install the exhaust heat shield (1c) and securely tighten the fasteners (1a) and (1b).
  11. Install the upstream oxygen sensor. Refer to SENSOR, OXYGEN, REMOVAL AND INSTALLATION .
  12. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  13. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
