Removal And Installation: Removal

WARNING:

Do not open the radiator draincock with the system hot and under pressure. Serious burns from coolant can occur.

  1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  2. Remove the battery. Refer to BATTERY, REMOVAL AND INSTALLATION .
  3. Drain the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 2.4L  .

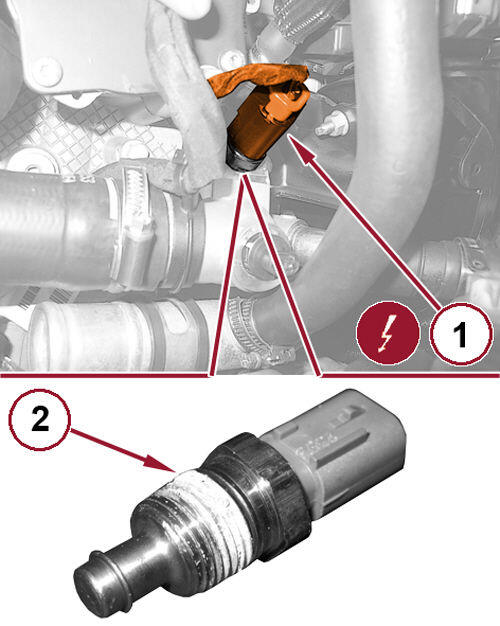

  4. Disconnect the engine coolant temperature sensor wire harness connector (1).
    GC0165413Courtesy of CHRYSLER GROUP, LLC
  5. Remove the engine coolant temperature sensor (2).

INSTALLATION

GC0165413Courtesy of CHRYSLER GROUP, LLC
  1. Install the engine coolant temperature sensor (2) and tighten the sensor to the proper torque specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE  .
  2. Connect the engine coolant temperature sensor wire harness connector (1).
  3. Fill the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 2.4L  .
  4. Install the battery. Refer to BATTERY, REMOVAL AND INSTALLATION .
  5. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
