Front, Base - EMEA

GC0189819Courtesy of CHRYSLER GROUP, LLC

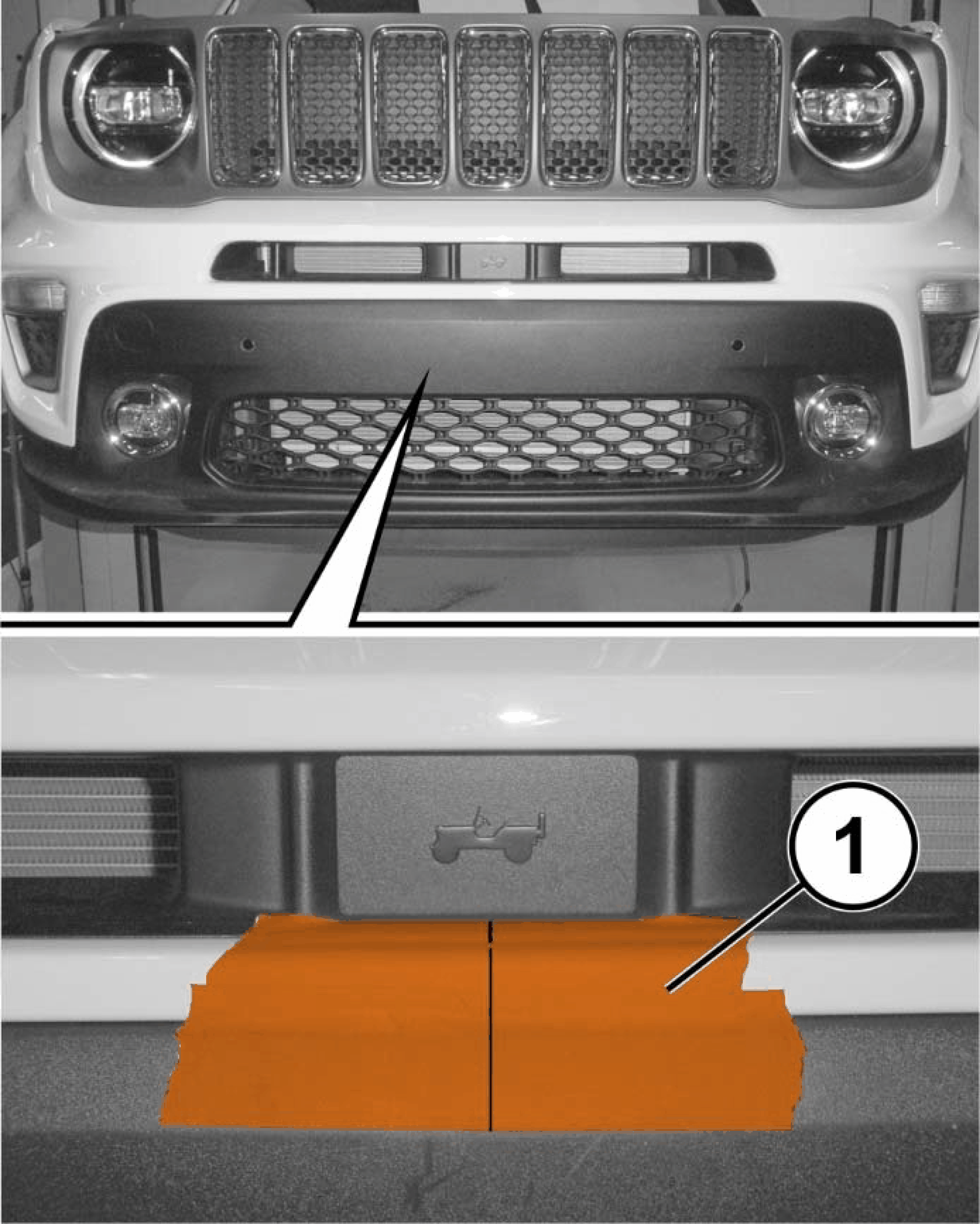

  1. Apply paper tape (1) to the upper center of the bumper and draw a line from the center between the two ribs on the bumper.
    GC0189587Courtesy of CHRYSLER GROUP, LLC

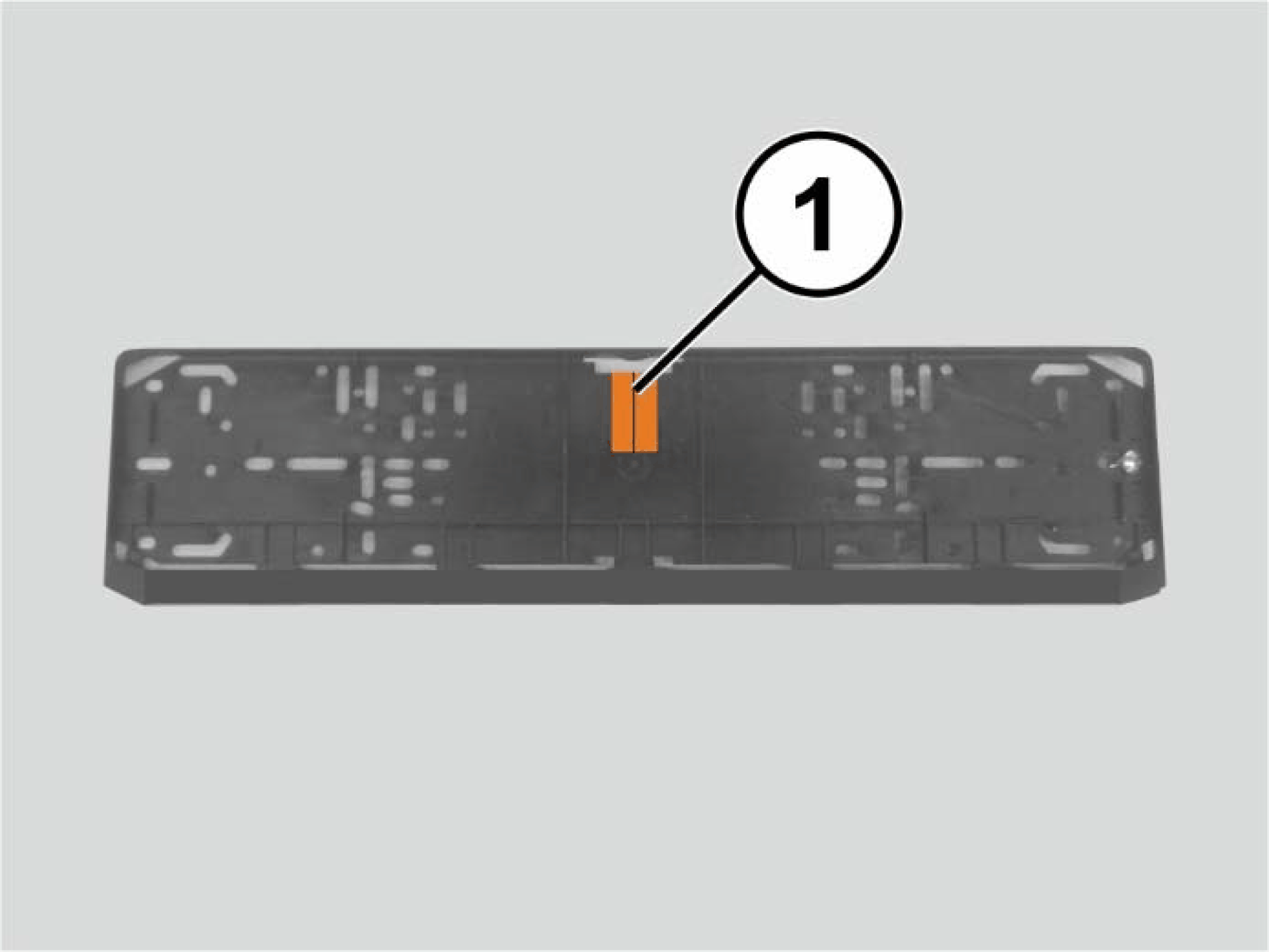

  2. Apply paper tape (1) to the center of the license plate holder to be installed and draw a line to mark the center of the license plate holder.
    GC0189365Courtesy of CHRYSLER GROUP, LLC

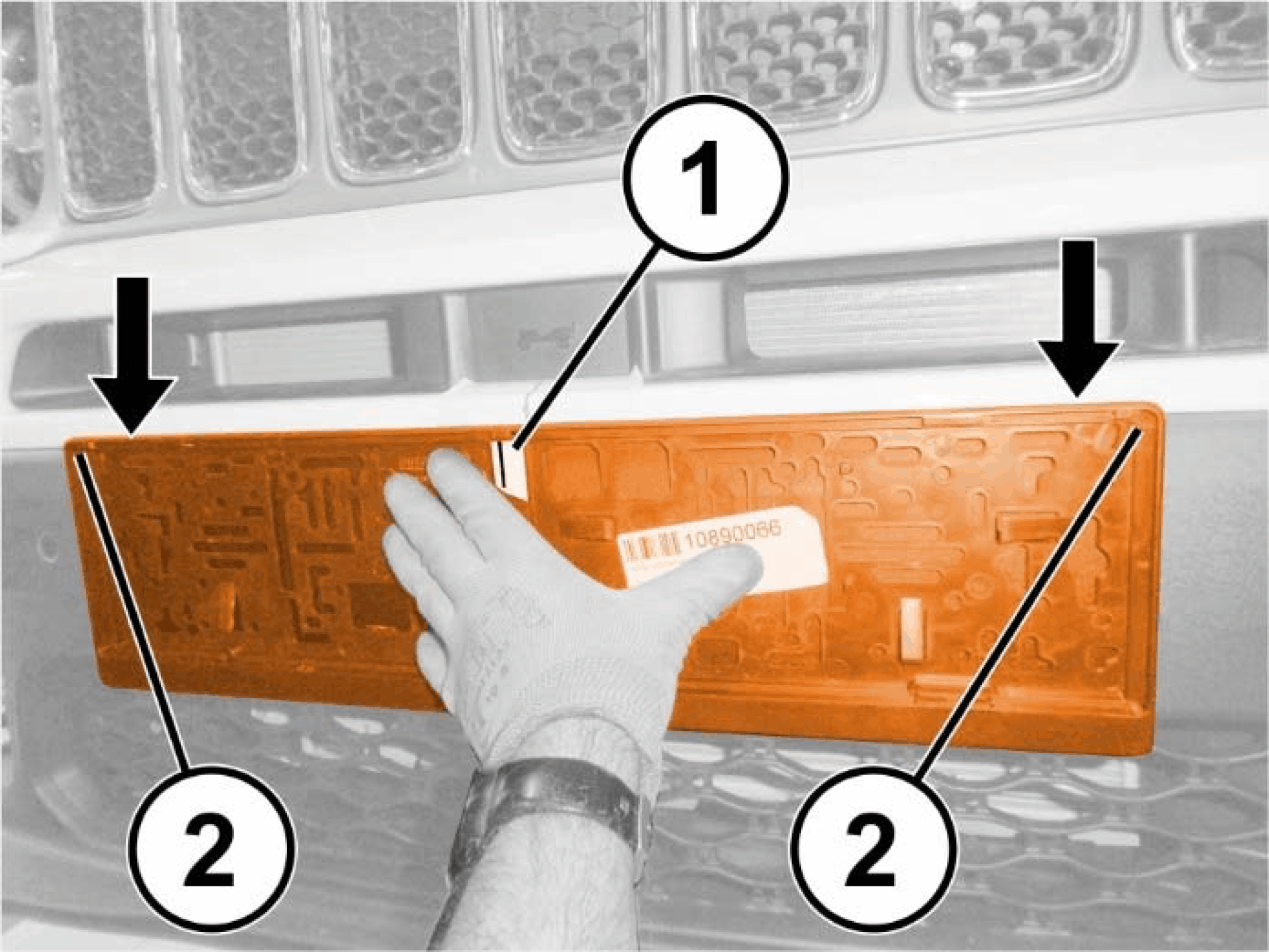

  3. Place the license plate holder on the bumper aligning the line (1) drawn on the license plate holder with the line drawn on the bumper.
  4. Align the upper side of the license plate holder (2) with the upper profile of the lower bumper mask.
    GC0189671Courtesy of CHRYSLER GROUP, LLC

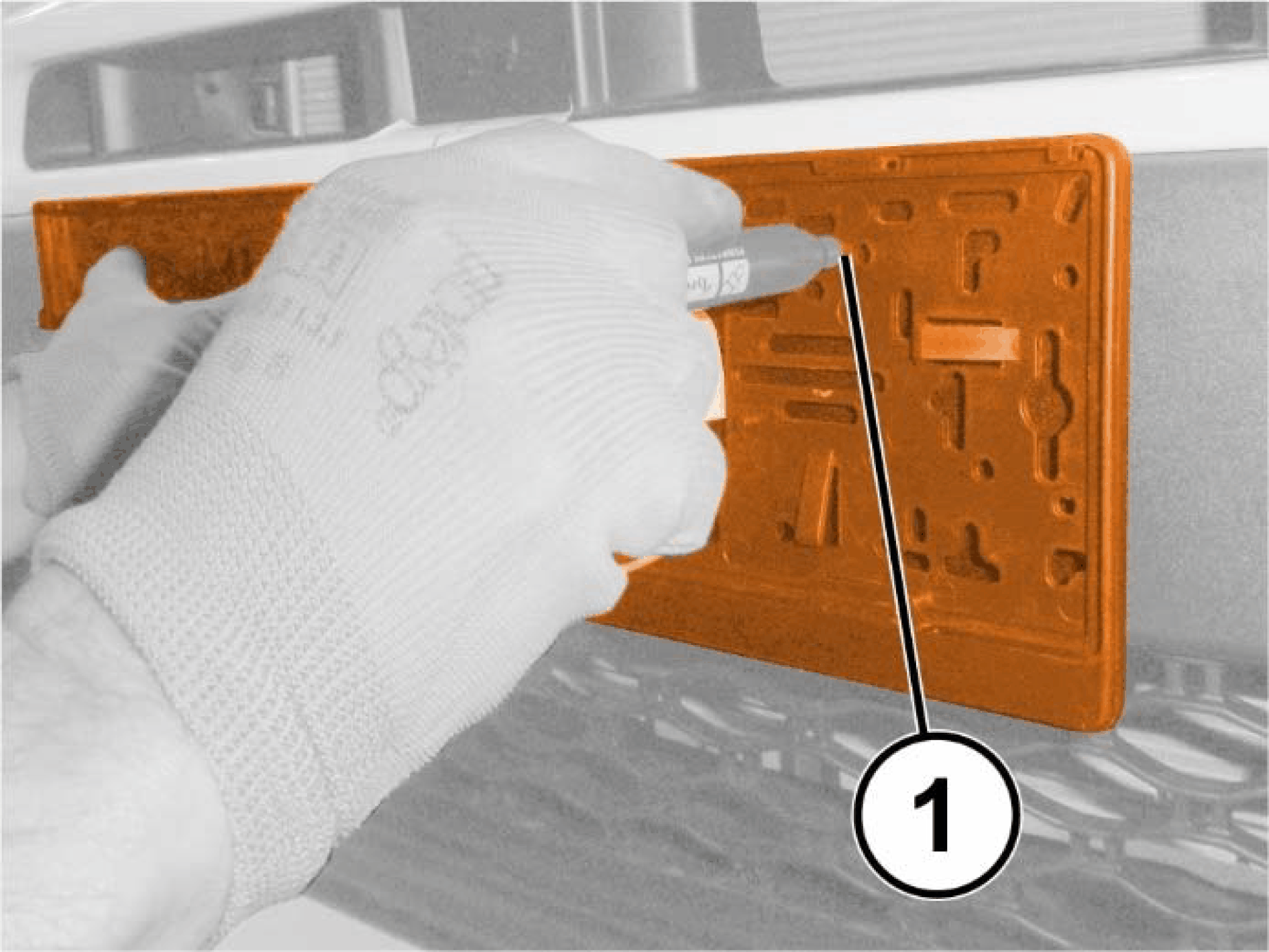

  5. Using the pre-drilled slots (1) on the license plate holder, mark the license plate mounting points.
    GC0189574Courtesy of CHRYSLER GROUP, LLC
  6. Support the license plate holder (1a) and tighten the mounting screws (1b) provided.
  7. Install the front license plate.
