Removal And Installation: Installation
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury when removing a deployed airbag, rubber gloves, eye protection, and a long-sleeved shirt should be worn. There may be deposits on the airbag unit and other interior surfaces. In large doses, these deposits may cause irritation to the skin and eyes.
To avoid serious or fatal injury, use extreme care to prevent any foreign material from entering the passenger airbag, or from becoming entrapped between the airbag cushion and the deployment door. Failure to observe this warning could result in occupant injuries upon airbag deployment.
To avoid serious or fatal injury, the instrument panel cover must never be painted. Replacement covers are serviced in the original colors. Paint may change the way in which the material of the cover responds to an airbag deployment. Failure to observe this warning could result in occupant injuries upon airbag deployment.
The following procedure is for replacement of an ineffective or damaged passenger Air Bag (PAB). If the airbag is ineffective or damaged, but not deployed, review the recommended procedures for Handling Non-Deployed Supplemental Restraints. Refer to HANDLING NON-DEPLOYED SUPPLEMENTAL RESTRAINTS . If the PAB has been deployed, review the recommended procedures for Service After A Supplemental Restraint Deployment before removing the airbag from the vehicle. Refer to SERVICE AFTER A SUPPLEMENTAL RESTRAINT SYSTEM DEPLOYMENT .
- Place the instrument panel trim cover on a suitable work surface with the PAB retainer or chute receptacle facing up. Be certain to take the proper precautions to prevent the instrument panel cover from receiving cosmetic damage during the following procedures.
- Carefully position the PAB housing (1a) to the PAB retainer or chute receptacle. The side of the PAB housing with 6 hooks faces rearward in the vehicle.

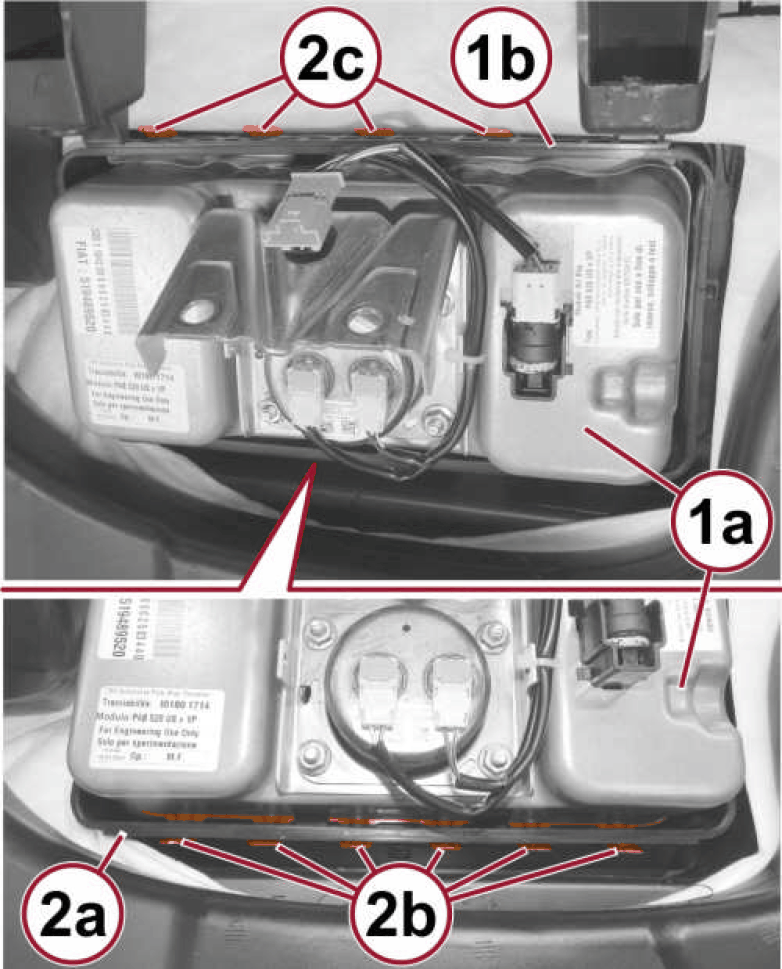

- Engage all of the hooks (2b) on the forward side of the PAB housing through the windows in the vertical wall on the forward side of the PAB retainer or chute (2a), then rotate the rearward side of the PAB housing downward into the receptacle.
- Inspect around the perimeter of the PAB making certain each of the hooks (2b and 2c) on the PAB housing is fully engaged through the windows in the forward (2a) and rearward (1b) vertical walls of the PAB retainer or chute receptacle.
- Install the PAB and the instrument panel cover onto the instrument panel carrier as a unit. Refer to COVER, INSTRUMENT PANEL, REMOVAL AND INSTALLATION
.

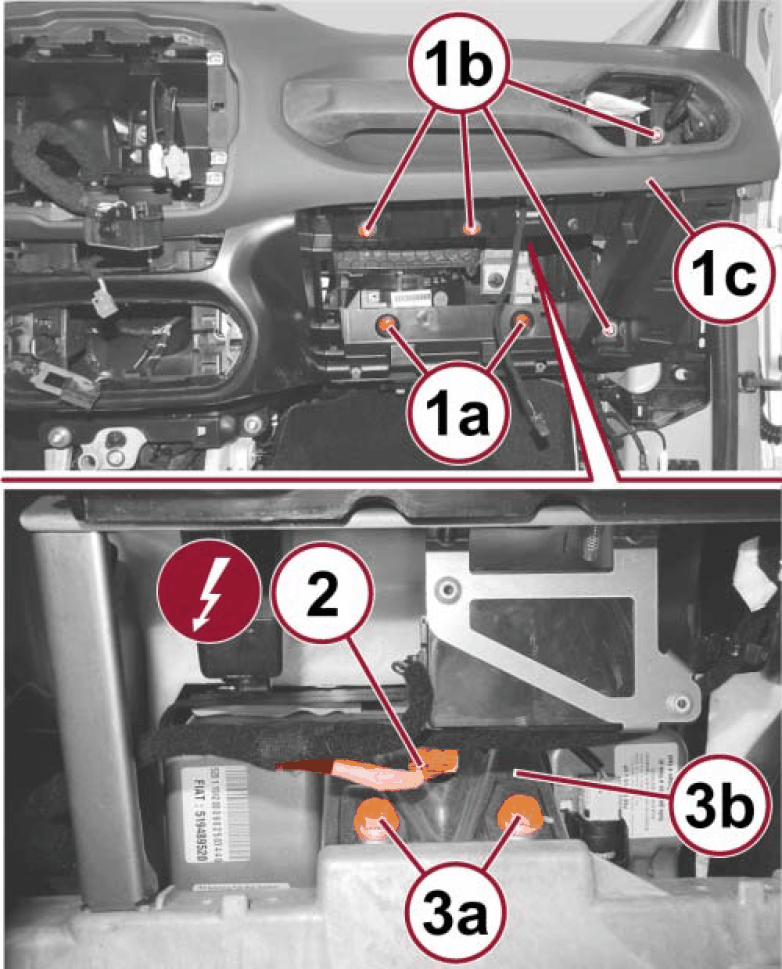

- Reach through the instrument panel cover glove box opening to access and connect the instrument panel wire harness connector (2) to the PAB jumper wire harness connector. Be certain the connectors are fully engaged and locked.
- Reach through the instrument panel glove box opening to install and tighten the fasteners (3a) that secure the PAB lower mounting bracket (3b) to the instrument panel carrier. Tighten the fasteners to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the glove box into the instrument panel. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
- Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to RESTRAINTS SYSTEM VERIFICATION TEST .
