2.4L Description

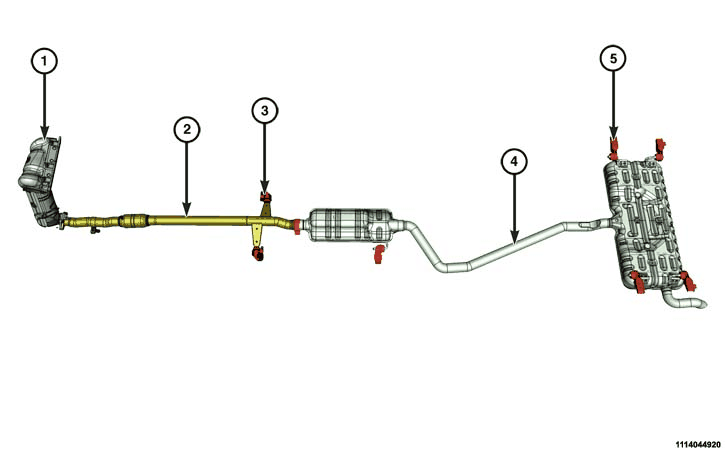

The following components makeup the exhaust system for the 2.4L engine:
- Exhaust manifold/Catalytic converter assembly (1)
- Cross-under pipe (2)
- Resonator/Muffler assembly (4)
- Exhaust isolators (3 and 5)
- Band clamp
The exhaust system is separated into two sections for service, the cross-under pipe and the resonator/muffler assembly. The upstream and downstream oxygen sensors are located in the exhaust manifold/catalytic converter assembly.
